SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Ice Maker, Optional

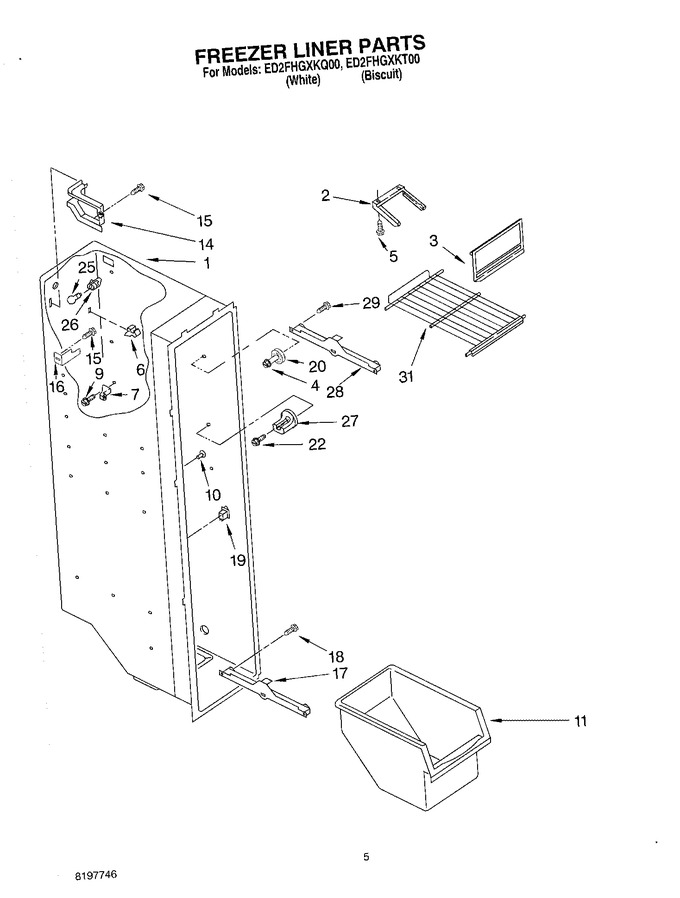

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1115380		Slide, Ice Door		Appelez-nous	-
3	2171712		Door, Ice Compartment				$ 66.58
4	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
5	WP489478		Screw   (Replaces: 489478)				$ 7.75
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	2196206		Support, Stud (4)		Appelez-nous	-
9	W10142289		Screw   (Replaces: 3400893)				$ 9.15
10	2176134		Grommet				$ 5.83
11	2216111		Bin, Freezer		Appelez-nous	-
14	2155572		Cover, Wiring		Appelez-nous	-
15	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.02
16	2209674		Bracket, Fill Tube		Appelez-nous	-
17	2181760		Slide, Basket (right Side)		Appelez-nous	-
17	2181759		Slide, Basket (left Side)		Appelez-nous	-
18	W10759522		Screw   (Replaces: 486298)				$ 7.75
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
22	W10142289		Screw   (Replaces: 3400893)				$ 9.15
25	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
26	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
27	2196207		Stud, Rear				$ 7.61
28	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
28	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
29	718257		Screw   (Replaces: 489100)		Appelez-nous	-
31	2174265		Shelf (2)		Appelez-nous	-
31	WP2174249K		Shelf (1)   (Replaces: 2174249)				$ 211.19
