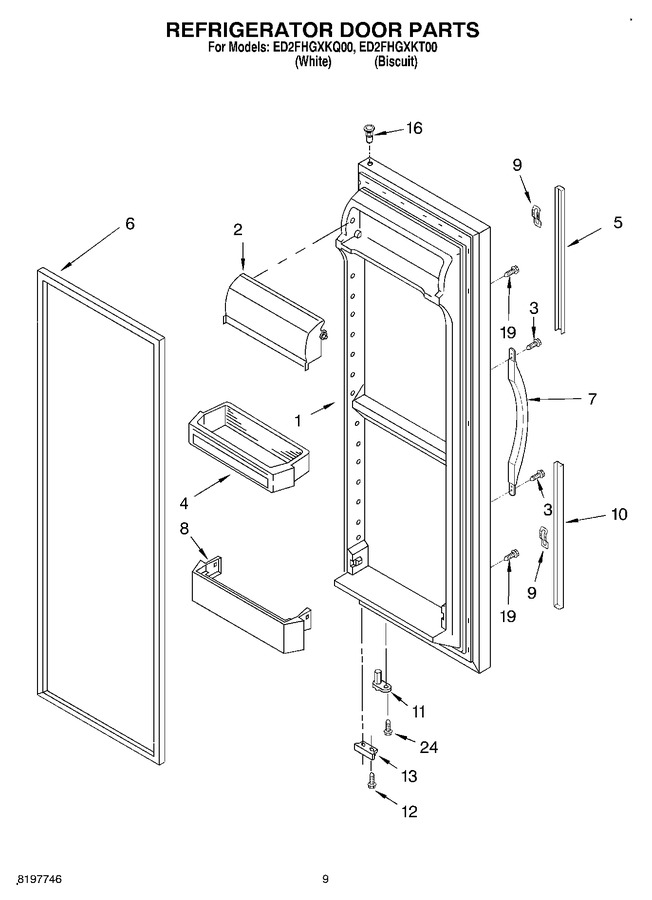

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206716W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2206716T		Refrigerator Door (includes Item 6) (biscuit)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 85.16
3	WP489491		Screw   (Replaces: 489491)				$ 6.95
4	WP2203828		Shelf Bin (3)   (Replaces: 2203828)				$ 95.52
5	2194971T		Extension, Top (biscuit)		Appelez-nous	-
5	2194971W		Extension, Top (white)				$ 44.85
6	2159073		Door Gasket, Magnetic (repair) (mist Beige)				$ 317.32
7	2186649W		Handle, Center (white)				$ 70.49
7	2186649T		Handle, Center (biscuit)		Appelez-nous	-
8	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
9	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.40
10	2194969W		Extension, Bottom (white)				$ 5.51
10	2194969T		Extension, Bottom (biscuit)		Appelez-nous	-
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
16	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 7.76
19	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
24	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
