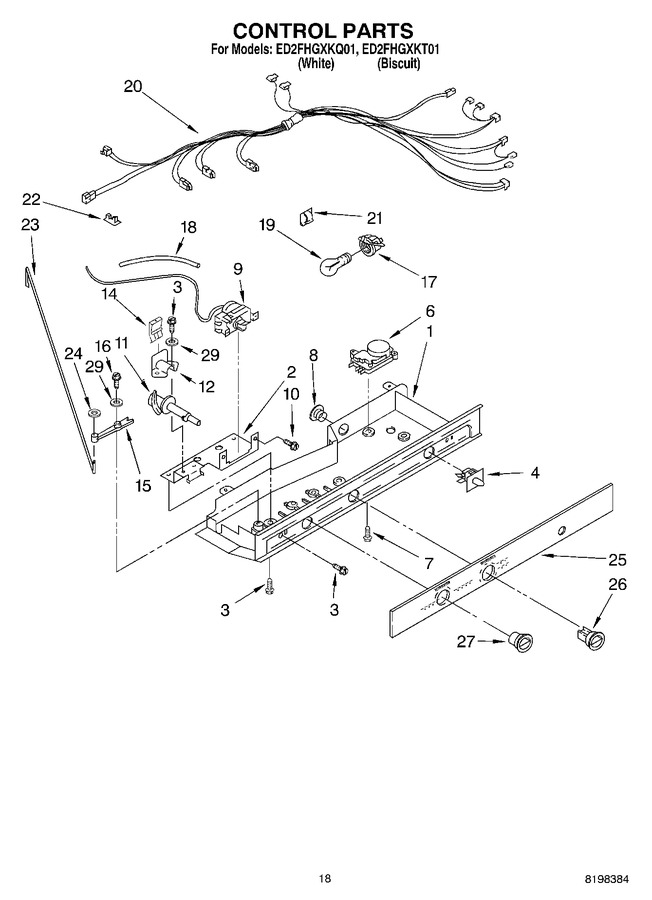

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200137		Control Box				$ 37.17
2	1110629		Mounting Bracket		Appelez-nous	-
3	WP3196557		Screw (4)   (Replaces: 3196537)			Immediately	$ 7.95
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
6	W10822278		Defrost Timer (10 Hr.)   (Replaces: 2188375)			Immediately	$ 34.44
7	489392		Screw (2)   (Replaces: 489398)				$ 13.35
8	940014		Hole Plug				$ 18.33
9	WP2198202		Thermostat Assembly   (Replaces: 2198202)			Immediately	$ 78.43
10	WP965173		Screw   (Replaces: 487869)			Immediately	$ 10.72
11	WP2182195		Cam Assembly   (Replaces: 2182195)				$ 5.13
12	1110560		Bearing Body				$ 10.76
14	WP2196062		Clip, Damper Control   (Replaces: 2196062)				$ 10.71
15	1110559		Pivot Arm				$ 8.35
16	627068		Screw				$ 12.12
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
18	WP2196003		Thermostat, Barrier   (Replaces: 2196001)				$ 7.95
19	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
20	2311636		Control Box Harness   (Replaces: 2187555)		Appelez-nous	-
21	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
22	1115375		Clip, Wiring				$ 11.15
23	1123960		Connecting Rod				$ 6.81
24	489285		Fastener, Push-on		Appelez-nous	-
25	2212074		Escutcheon, Control Box		Appelez-nous	-
26	2182111		Thermostat Knob				$ 25.40
27	2197871		Knob, Air Control				$ 6.56
29	489203		Spring Washer		Appelez-nous	-
