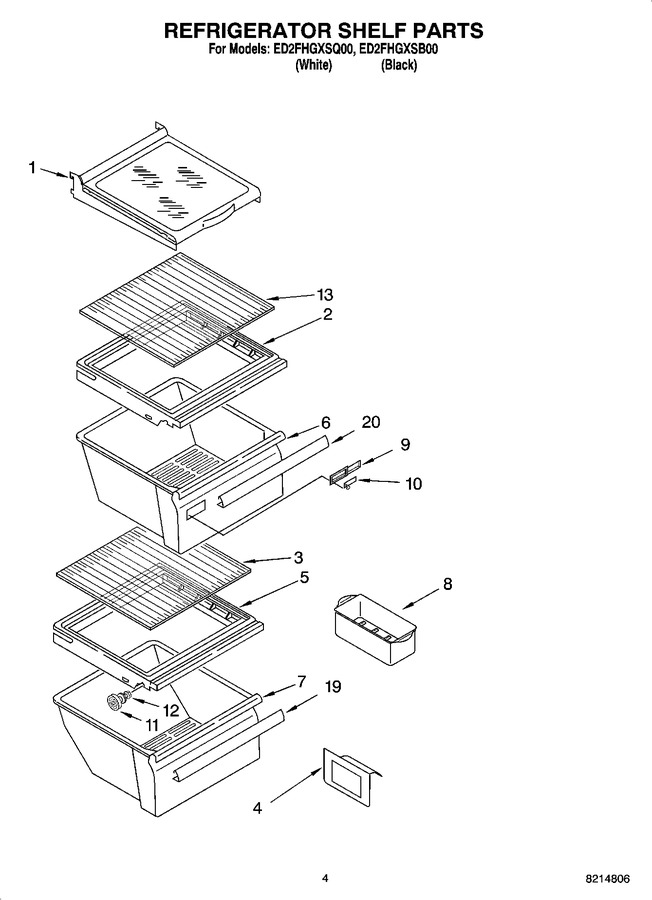

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2188695 | Shelf Assembly, Cantilever (2) |
|
$ 119.00 | |||||
| 2 | W10508993 | Cover, Crisper (Replaces: 2209698) |
|
$ 291.29 | |||||
| 3 | W10864399 | Glass, Cover (Replaces: 2179259) |
|
$ 220.98 | |||||
| 4 | 2179350 | Deflector |
|
$ 81.80 | |||||
| 5 | W10508993 | Cover, Meat Pan (Replaces: 2311726) |
|
$ 291.29 | |||||
| 6 | WP2188656 | Crisper Pan (Replaces: 2188652) |
|
$ 136.40 | |||||
| 7 | WP2188664 | Meat Pan (Replaces: 2188654) |
|
Immediately | $ 85.30 | ||||
| 8 | W10136387A | Egg Bin (Replaces: 2216624) |
|
$ 18.61 | |||||
| 9 | WP2179343 | Front, Cripser (Replaces: 2179343) |
|
$ 32.40 | |||||
| 10 | WP2179342 | Slide, Humidity Control (Replaces: 2179342) |
|
$ 29.14 | |||||
| 11 | W11223328 | Stud Assembly (Replaces: 2196485) |
|
Immediately | $ 14.07 | ||||
| 12 | WP3-24004-109 | Screw (Replaces: 3400894) |
|
$ 8.05 | |||||
| 26 | 2150331 | Cover, Conduit |
|
$ 24.40 | |||||
| 27 | W10759522 | Screw (Replaces: 486298) |
|
$ 7.75 | |||||
| 37 | 488280 | Screw (2) |
|
- |
