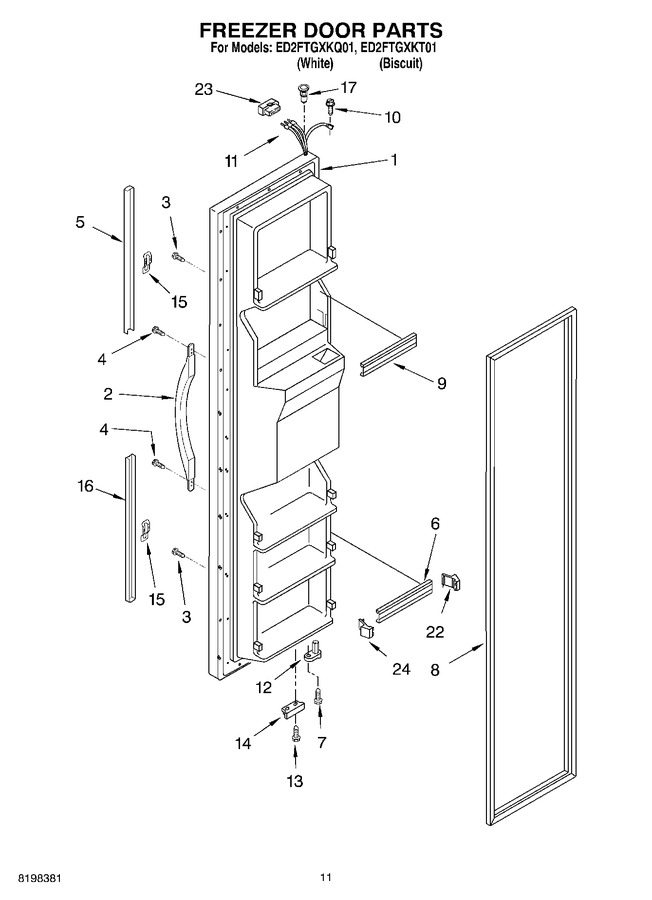

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2216317W | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 1 | 2216317T | Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit) |
|
- | |||||
| 2 | 2186649T | Handle, Center (biscuit) |
|
- | |||||
| 2 | 2186649W | Handle, Center (white) |
|
$ 70.49 | |||||
| 3 | WP3400852 | Screw (Replaces: 3400852) |
|
$ 9.84 | |||||
| 4 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.95 | |||||
| 5 | 2194971W | Extension, Handle Top (white) |
|
$ 44.85 | |||||
| 5 | 2194971T | Extension, Handle Top (biscuit) |
|
- | |||||
| 6 | 2195919 | Trim, Door Shelf (4) |
|
- | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 8 | 2159072 | Door Gasket, Magnetic (repair) (mist Beige) (Replaces: 2221301) |
|
$ 308.19 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2209680) |
|
Immediately | $ 23.11 | ||||
| 10 | WP489128 | Screw (Replaces: 8281149) |
|
$ 10.88 | |||||
| 11 | 2311642 | Wire Harness (Replaces: 2206602) |
|
$ 217.92 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 14 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 40.03 | |||||
| 15 | WP2195327 | Clip (Replaces: 2195327) |
|
$ 7.40 | |||||
| 16 | 2194969T | Extension, Handle Bottom (biscuit) |
|
- | |||||
| 16 | 2194969W | Extension, Handle Bottom (white) |
|
$ 5.51 | |||||
| 17 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 7.76 | |||||
| 22 | WP2195916K | Endcap (4) (Replaces: 2195916) |
|
Immediately | $ 12.55 | ||||
| 23 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 23.65 | |||||
| 24 | 2195917 | Endcap (4) |
|
- |
