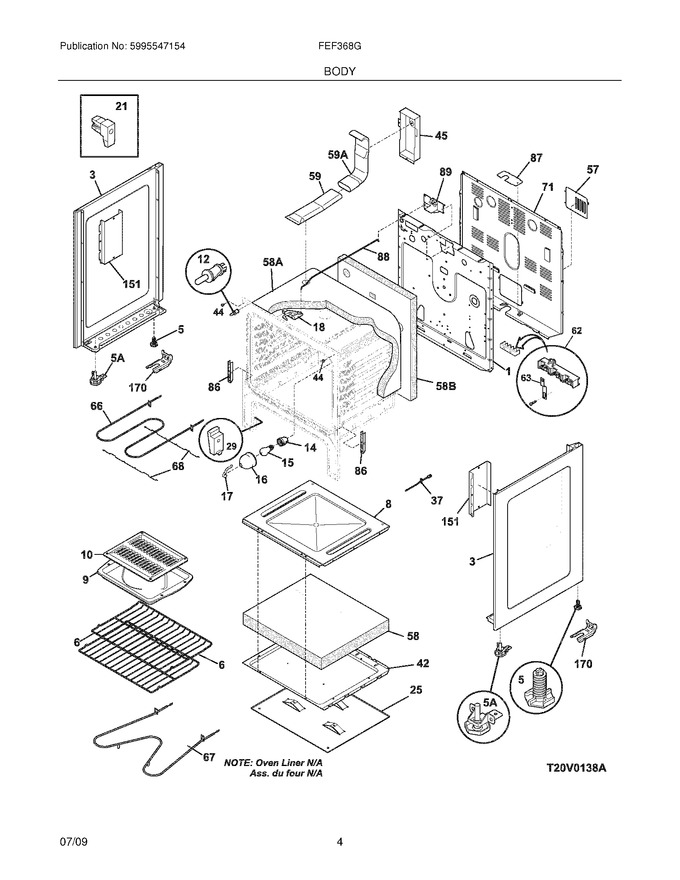

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401801		Panel,main Back				$ 85.26
3	316400142		Panel,bodyside ,white ,rh   (Replaces: 316400116)				$ 156.50
3	316400143		Panel,bodyside ,white ,lh   (Replaces: 316400117)				$ 156.50
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 30.55
6	316496201		Rack,oven ,(2)   (Replaces: 316496202)			Immediately	$ 114.98
8	316400601		Panel,oven Bottom				$ 139.86
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
12	316445501		Switch,oven Light ,door Frame			Immediately	$ 100.01
14	316116400		Receptacle,oven Light			Immediately	$ 62.33
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 22.75
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 19.07
17	316087500		Retainer,lens				$ 63.00
21	316408000		Clip,bodyside				$ 20.22
25	316406200		Shield,heat ,lower				$ 97.74
29	807047102		Glide,drawer ,front   (Replaces: 316407301)			Immediately	$ 26.47
42	316407700		Shield,wool ,lower				$ 145.77
44	316517600		Spacer,oven Door				$ 13.39
45	316234100		Shield,wire ,vent Tube				$ 77.96
57	316457801		Cover,access				$ 14.32
58	316403800		Insulation,oven Bottom		Appelez-nous	-
59	316208401		Vent Tube,assembly ,w/catalyst				$ 215.71
63	316542600		Plate,grounding Strap		Appelez-nous	-
67	316075103		Element,bake   (Replaces: 316075104)			Immediately	$ 47.07
68	316404002		Support,element ,broil   (Replaces: 316404000)				$ 9.72
71	316422304		Shield,rear Wall				$ 115.53
86	316441300		Receptacle,hinge ,(2)   (Replaces: 316537400)				$ 24.41
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316203500		Rod,auto Latch				$ 80.33
151	316404600		Shield,bodyside				$ 49.30
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 21.01
58A	316406602		Insulation,oven Wrapper				$ 134.66
58B	316406500		Insulation,oven Back				$ 98.44
59A	316208304		Tube,oven Vent ,upper				$ 88.99
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 16.76
F170	316541700		Template,anti-tip		Appelez-nous	-
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 14.32
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
F18	316405800		Latch Assembly,oven Door			Immediately	$ 63.04
F37	316490000		Probe,oven Temp			Immediately	$ 64.78
F62	5303935271		Terminal Block Kit				$ 81.73
F66	316203200		Element-broil			Immediately	$ 182.72
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 58.16
FNI	316443042		Wiring Harness,main				$ 189.63
NI	316542200		Insulator		Appelez-nous	-
NI	5308014215		Screw`6-20 X 0.312				$ 2.53
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 12.60
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.37
NI	316418901		Screw,trilobe ,10-32 X 5/16`` ,black				$ 15.75
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 16.91
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 14.96
