SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Assembly

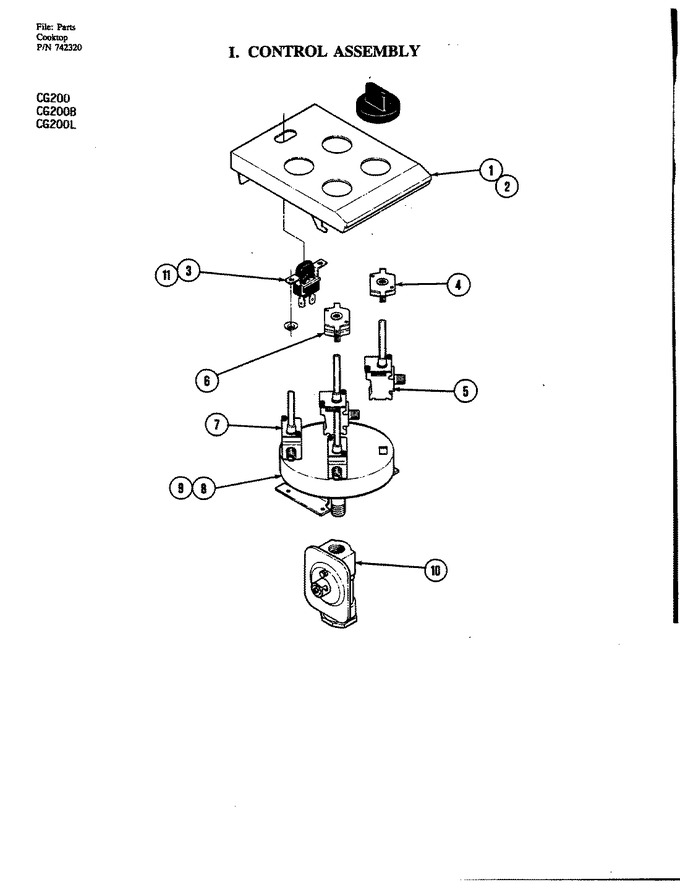

03 - Control Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704503 | Escutcheon | 11 |
|
- | ||||
| 2 | WP71001641 | Knob, Switch (Replaces: Y704539) | 11 |
|
Immediately | $ 18.29 | |||
| 3 | Y704573 | Switch, Fan (blk) | 11 |
|
- | ||||
| 4 | WPY704512 | Switch, Valve (rt) (Replaces: Y704512) | 11 |
|
$ 114.36 | ||||
| 5 | 704504 | Valve (rt) | 11 |
|
- | ||||
| 6 | WPY704513 | Switch, Valve (lt) (Replaces: Y704513) | 11 |
|
$ 114.83 | ||||
| 7 | Y704505 | Valve (lt) | 11 |
|
- | ||||
| 8 | Y712273 | Manifold | 11 |
|
- | ||||
| 9 | 704556 | Harness, Wire | 11 |
|
$ 29.06 | ||||
| 10 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 11 |
|
Immediately | $ 238.90 | |||
| 11 | 7103P166-60 | Palnut (Replaces: 715500) | 11 |
|
$ 18.56 |
