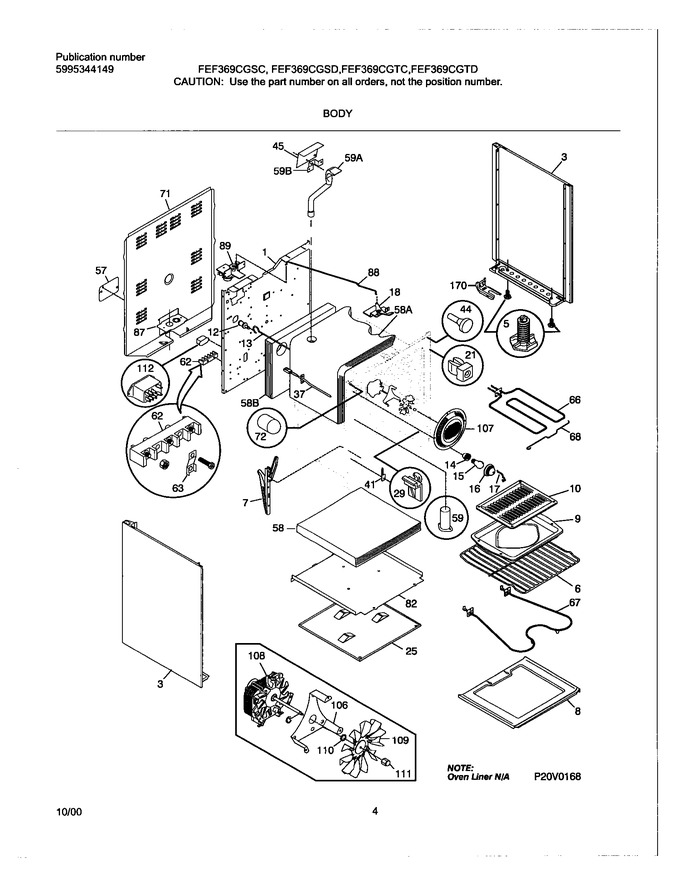

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080803		Panel-main Back,galv Steel ,short		Appelez-nous	-
3	316081036		Panel Control,almond ,rh		Appelez-nous	-
3	316081037		Body Side Panel,almond ,lh		Appelez-nous	-
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316067902		Rack,oven			Immediately	$ 114.56
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316026800		Rod-light Switch/door				$ 36.86
14	316116400		Socket-light/lamp,oven			Immediately	$ 62.33
15	40A15		Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 19.07
17	316087500		Retainer,lens				$ 63.00
21	3014099		Spacer,bodyside				$ 3.62
25	3200848		Shield,heat ,lower		Appelez-nous	-
29	3051162		Gilde-drawer, Front			Immediately	$ 9.13
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 61.51
45	316066100		Shield-wire, S/t Vent		Appelez-nous	-
57	316081100		Cover,access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073602		Tube-oven Vent				$ 53.35
62	316085600		Insulator		Appelez-nous	-
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	5303051140		Elem Broil				$ 225.23
68	316075300		Support-element, Broil		Appelez-nous	-
71	316015804		Shield-rear Wall		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
58A	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58B	316054201		Insulation, Oven Back		Appelez-nous	-
59A	316023600		Tube, Oven Vent, Upper		Appelez-nous	-
59B	316040100		Bracket-mounting,vent Tube		Appelez-nous	-
F12	316027701		Switch-oven Light		Appelez-nous	-
F18	316036300		Latch-door		Appelez-nous	-
F37	5304497424		Probe-oven Temp   (Replaces: 316111202)			Immediately	$ 42.58
F62	5303935061		Terminal Block Kit		Appelez-nous	-
F67	316075103		Element-bake			Immediately	$ 47.07
NI	3203550		Plug Buttom (non-illustrated)			Immediately	$ 16.91
NI	316045000		Clip-wire		Appelez-nous	-
NI	5303051099		Nut		Appelez-nous	-
NI	316205500		Nut   (Replaces: 5303308427)				$ 12.60
NI	5308014215		Screw				$ 2.53
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 11.13
NI	316001571		Harness-main		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,   (Replaces: 316021105)			Immediately	$ 30.55
