SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Optional

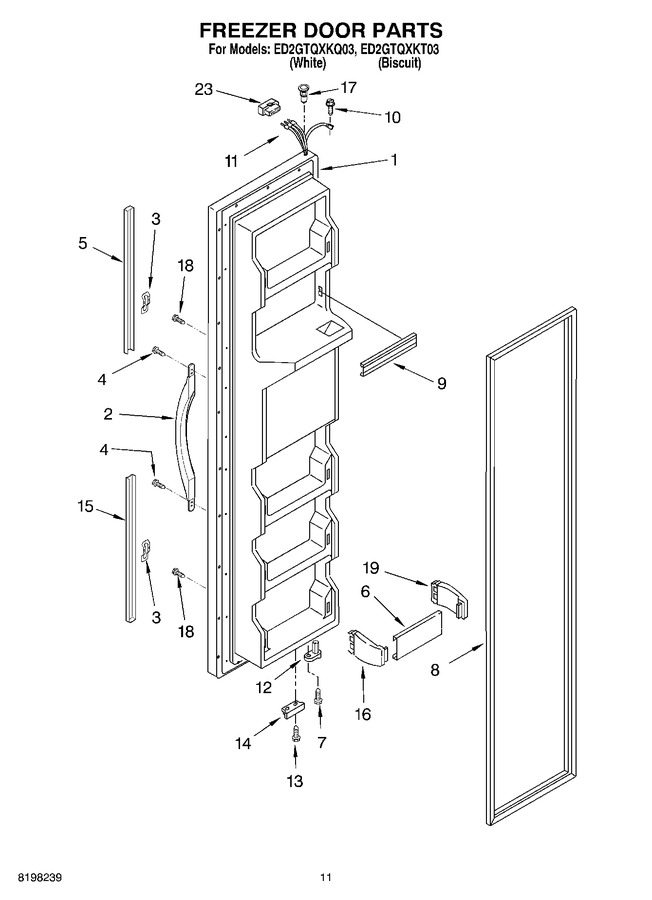

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2186649T		Freezer Door (includes Item 8 And Dispenser Front Parts) Handle, Center (biscuit)		Appelez-nous	-
1	2216369T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2186649W		Freezer Door (includes Item 8 And Dispenser Front Parts) Handle, Center (white)				$ 70.49
1	2216369W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
3	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	2194971T		Extension, Handle Top (biscuit)		Appelez-nous	-
5	2194971W		Extension, Handle Top (white)				$ 44.85
6	2195919		Trim, Door (4)		Appelez-nous	-
7	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
8	2159072		Door, Gasket Magnetic   (Replaces: 2221301)				$ 323.60
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2311642		Wire Harness   (Replaces: 2206602)				$ 228.82
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
15	2194969T		Extension, Handle Bottom (biscuit)		Appelez-nous	-
15	2194969W		Extension, Handle Bottom (white)				$ 5.51
16	2195917		Endcap (left)		Appelez-nous	-
17	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
18	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
19	WP2195916K		End Cap (right)   (Replaces: 2195916)			Immediately	$ 13.18
23	WP2154473		Connector   (Replaces: 2154473)				$ 24.83

    View Diagram in Separate Window       Print Part List
