01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

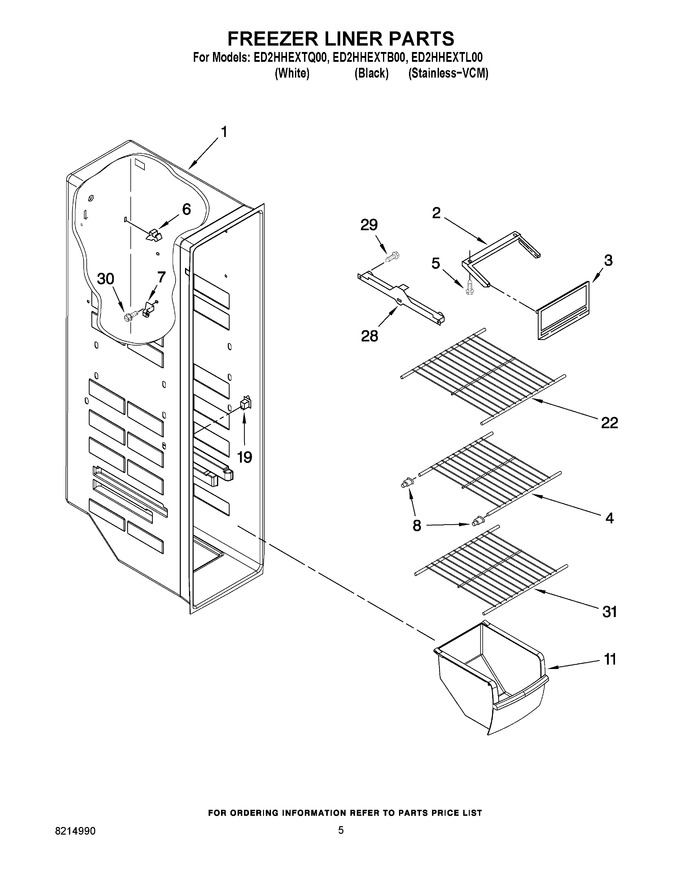

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Aseviceable Part)		Appelez-nous	-
2	1115380		Slide, Ice Door		Appelez-nous	-
3	2171712		Door, Ice Compartment				$ 69.91
4	WPW10318953		Shelf, Wire   (Replaces: 2309634)			Immediately	$ 87.76
5	WP489478		Screw   (Replaces: 489478)				$ 8.18
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	2196206		Support, Stud (4)		Appelez-nous	-
8	WPW10130299		Cup, Shelf Mounting (12)   (Replaces: 2163762)			Immediately	$ 14.70
11	WP2309758		Freezer Bin   (Replaces: 2309758)			Immediately	$ 130.69
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
22	WPW10318952		Shelf Wire   (Replaces: 2309633)			Immediately	$ 92.48
28	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
28	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
29	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
30	W10142289		Screw   (Replaces: 3400893)				$ 9.61
31	WPW10318951		Shelf, Wire   (Replaces: 2309632)				$ 85.76
