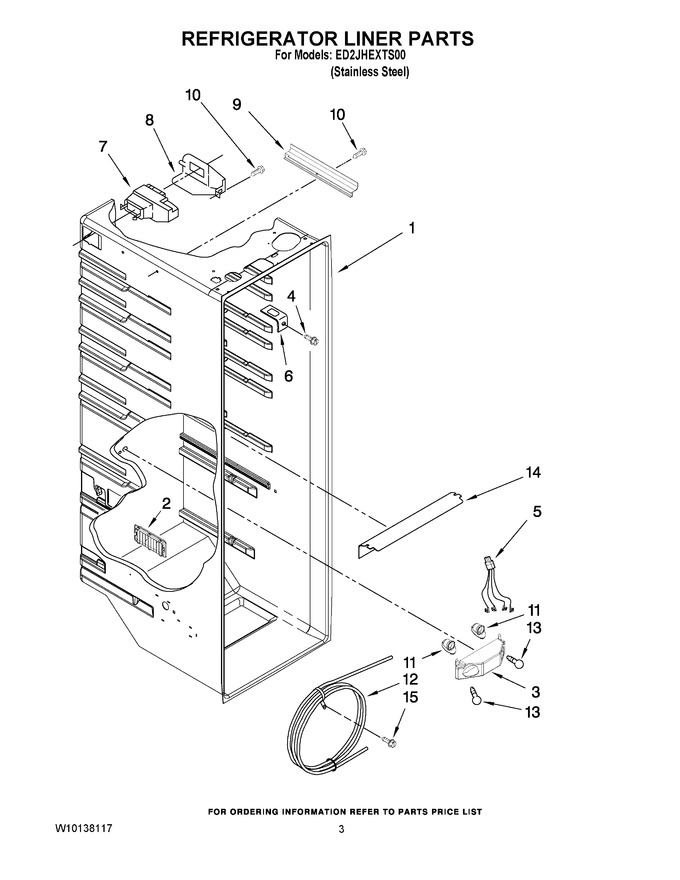

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 2257741 | Louver |
|
- | |||||
| 3 | 2256035 | Bracket, Dual Crisper Light |
|
$ 62.54 | |||||
| 4 | WPW10141645 | Screw (2) (Replaces: 489084) |
|
$ 7.67 | |||||
| 5 | 2311637 | Wire Harness, Crisper Light |
|
$ 140.23 | |||||
| 6 | 2311612 | Clip, Control Box (2) |
|
- | |||||
| 7 | WPW10151374 | Air Diffuser Assembly (Replaces: 2209753) |
|
Immediately | $ 99.78 | ||||
| 8 | 2152019 | Air Diffuser Cover |
|
$ 86.03 | |||||
| 9 | 2150331 | Cover, Conduit |
|
$ 24.40 | |||||
| 10 | W10759522 | Screw (Replaces: 486298) |
|
$ 7.75 | |||||
| 11 | 4387478 | Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 12 | WP2256126 | Reservoir (Replaces: 2256126) |
|
$ 168.85 | |||||
| 13 | W11679940 | Light Bulb (Replaces: 2311792) |
|
Immediately | $ 11.30 | ||||
| 14 | 2209769 | Light Lens |
|
- | |||||
| 15 | 488280 | Screw (2) |
|
- |
