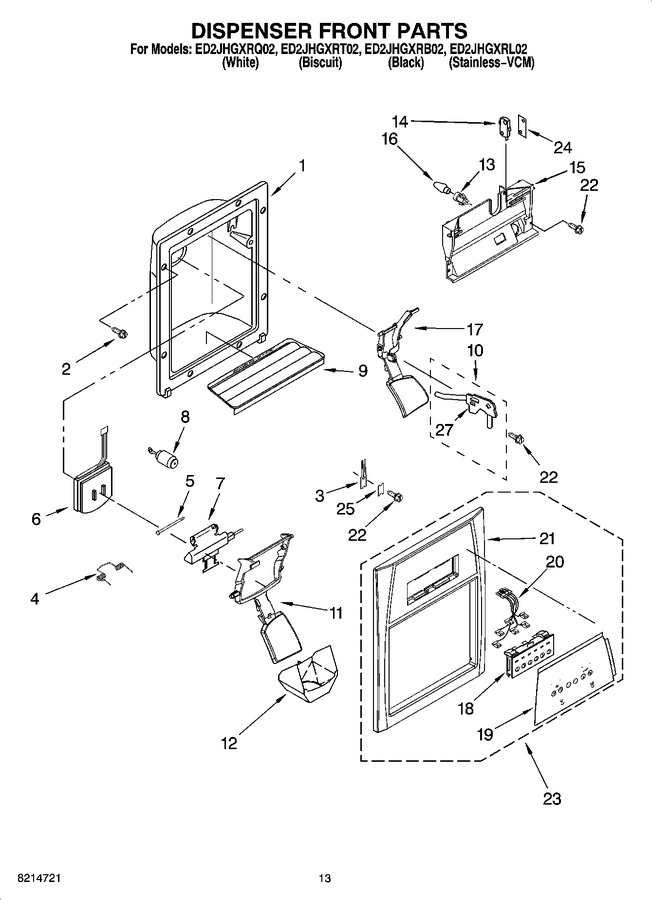

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 12.36
4	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 87.40
5	WP2196195		Pin   (Replaces: 2196195)				$ 15.31
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 26.83
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	WP2206671B		Grille, Overflow (black)   (Replaces: 2206671B)				$ 72.50
9	2206671T		Grille, Overflow (biscuit)				$ 27.69
9	WP2206671W		Grille, Overflow (white)   (Replaces: 2206671W)				$ 72.17
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: 2304317)				$ 140.84
11	2255431T		Lever, Ice Dispenser (biscuit)				$ 43.34
11	WP2255431W		Lever, Ice Dispenser (white)   (Replaces: 2255431W)				$ 107.19
11	WP2255431B		Lever, Ice Dispenser (black)   (Replaces: 2255431B)				$ 110.69
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 30.02
13	2180200		Lamp Holder				$ 103.59
14	WP2162361		Switch   (Replaces: 2162361)			Immediately	$ 28.71
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 26.97
16	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 14.85
17	WP2255432B		Lever, Water Dispenser (black)   (Replaces: 2255432B)				$ 111.36
17	WP2255432T		Lever, Water Dispenser (biscuit)   (Replaces: 2255432T)				$ 105.85
17	WP2255432W		Lever, Water Dispenser (white)   (Replaces: 2255432W)				$ 106.00
20	2311650		Wire Assembly   (Replaces: 2187409)				$ 94.16
22	WP3400906		Screw   (Replaces: 489000)				$ 9.05
23	2301461W		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)		Appelez-nous	-
23	2301461T		Front Cover Assembly (includes Items 18, 19, 20 & 21) (biscuit)		Appelez-nous	-
23	2301461B		Front Cover Assembly (includes Items 18, 19, 20 & 21) (black)		Appelez-nous	-
24	625834		Spacer, Switch (2)				$ 7.99
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 12.54
27	WP2304673		Bracket, Dispenser   (Replaces: 2304673)				$ 16.38
