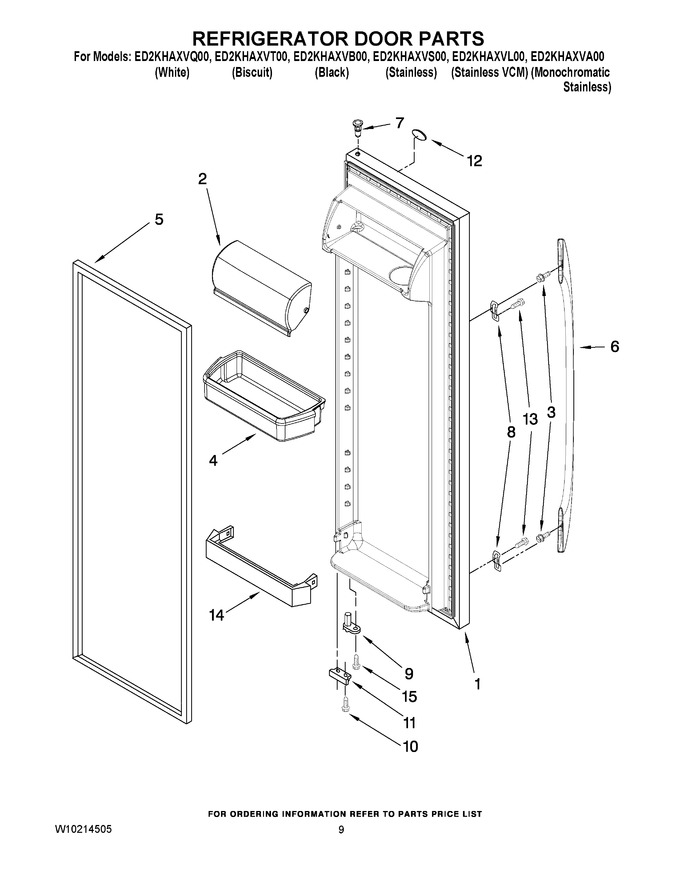

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	L2263189W		Refrigerator Door (includes Item 5) (white)   (Replaces: 2263189W)				$ 1,086.34
1	2263189T		Refrigerator Door (includes Item 5) (biscuit)		Appelez-nous	-
1	L2263189B		Refrigerator Door (includes Item 5) (black)   (Replaces: 2263189B)		Appelez-nous	-
1	2219033S		Refrigerator Door (includes Item 5) (stainless)		Appelez-nous	-
1	2219033L		Refrigerator Door (includes Item 5) (stainless Vcm)		Appelez-nous	-
1	2219033LA		Refrigerator Door (includes Item 5) (monochromatic)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
4	WPW10321304		Door Bin (3)   (Replaces: 2304235)			Immediately	$ 44.73
5	W10136732		Door Gasket, Magnetic (grey)   (Replaces: 2327161)			Immediately	$ 344.00
5	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 319.60
5	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 317.32
6	WPW10127761K		Handle (includes No.3) (white)   (Replaces: W10127765)				$ 186.67
6	WPW10127762		Handle (includes No.3) (black)   (Replaces: W10127766)				$ 190.65
6	W10273555		Handle (includes No.3) (stainless/satina)   (Replaces: W10127768)				$ 187.89
6	WPW10127763		Handle (includes No.3) (biscuit)   (Replaces: W10127767)				$ 173.22
7	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
8	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 10.87
11	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
11	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
13	WP8533988		Screw (4)   (Replaces: W10155511)			Immediately	$ 7.95
14	WP2156022		Trivet   (Replaces: 2156022)			Immediately	$ 72.80
15	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
