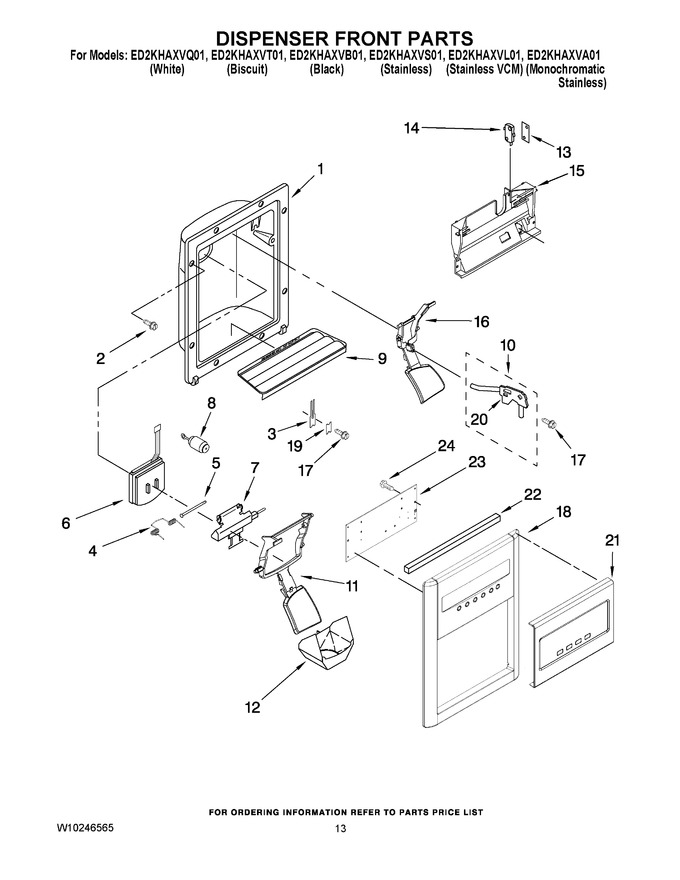

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.77 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2304772) |
|
$ 83.24 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 14.58 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 24.69 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Mechanism Delay |
|
- | |||||
| 9 | W10171992 | Grille, Overflow (nickel) |
|
$ 88.69 | |||||
| 9 | WP2206671B | Grille, Overflow (black) (Replaces: 2206671B) |
|
$ 69.05 | |||||
| 9 | 2206671T | Grille, Overflow (biscuit) |
|
$ 27.69 | |||||
| 9 | WP2206671W | Grille, Overflow (white) (Replaces: 2206671W) |
|
$ 68.73 | |||||
| 10 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces: 2304317) |
|
$ 134.13 | |||||
| 11 | W10155161 | Lever, Ice Dispenser (apollo Grey) |
|
$ 99.73 | |||||
| 11 | WPW10152853 | Lever, Ice Dispenser (white) (Replaces: W10152853) |
|
$ 106.51 | |||||
| 11 | WPW10152854 | Lever, Ice Dispenser (black) (Replaces: W10152854) |
|
$ 103.81 | |||||
| 11 | W10152855 | Lever, Ice Dispenser (biscuit) |
|
$ 98.90 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.63 | ||||
| 13 | 625834 | Spacer, Switch (2) |
|
$ 7.99 | |||||
| 14 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 27.34 | ||||
| 15 | W10206322 | Bracket, Control |
|
- | |||||
| 16 | W10152860 | Lever, Water Dispenser (biscuit) |
|
Immediately | $ 95.77 | ||||
| 16 | W10152862 | Lever, Water Dispenser (apollo Grey) |
|
- | |||||
| 16 | WPW10152859 | Lever, Water Dispenser (black) (Replaces: W10152859) |
|
Immediately | $ 97.92 | ||||
| 16 | WPW10152858 | Lever, Water Dispenser (white) (Replaces: W10152858) |
|
$ 104.60 | |||||
| 17 | WP3400906 | Screw (Replaces: 489000) |
|
$ 7.84 | |||||
| 18 | W10157644 | Front Cover Assembly (biscuit) |
|
- | |||||
| 18 | W10172004 | Front Cover Assembly (nickel) |
|
- | |||||
| 18 | W10157654 | Front Cover Assembly (staniless) |
|
- | |||||
| 18 | W10157643 | Front Cover Assembly (black) |
|
$ 329.50 | |||||
| 18 | W10157642 | Front Cover Assembly (white) |
|
- | |||||
| 19 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.67 | |||||
| 20 | WP2304673 | Bracket, Dispenser (Replaces: 2304673) |
|
$ 15.60 | |||||
| 21 | N/P | Fascia, Disp (not Available, Order No.18) |
|
- | |||||
| 22 | 2305571 | Gasket |
|
$ 26.13 | |||||
| 23 | 2321748 | Control Board, Lcd |
|
$ 224.49 | |||||
| 24 | 2006254 | Screw, Board (Replaces: 489214) |
|
$ 13.13 |
