SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

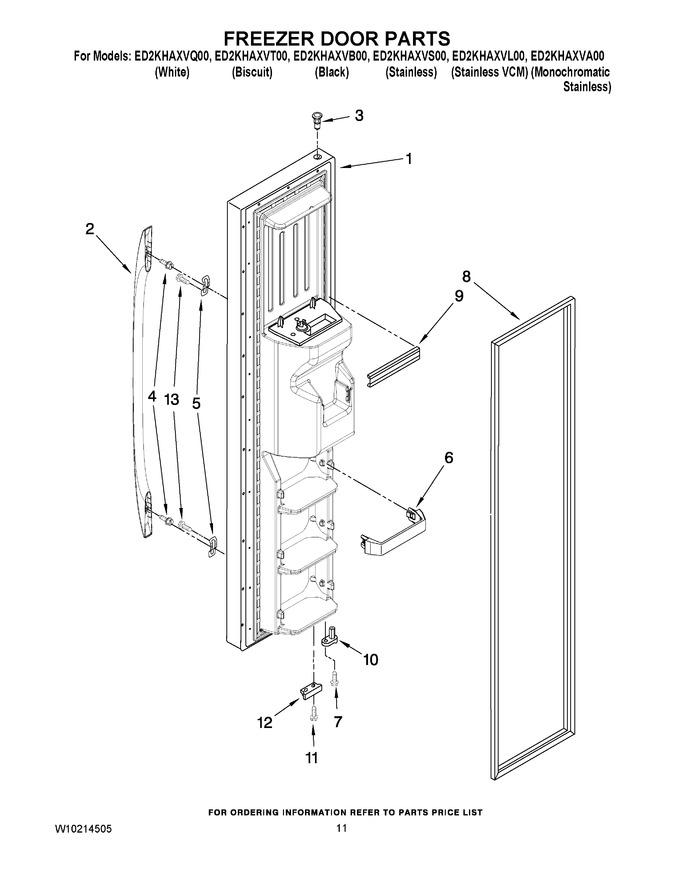

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2327199W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2327199T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2327199B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2327199S		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	2327199L		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
1	2327199LA		Freezer Door (includes Item 8 And Dispenser Front Parts) (monochromatic)		Appelez-nous	-
2	WPW10127761K		Handle (includes No.4) (white)   (Replaces: W10127765)				$ 186.67
2	WPW10127763		Handle (includes No.4) (biscuit)   (Replaces: W10127767)				$ 173.22
2	WPW10127762		Handle (includes No.4) (black)   (Replaces: W10127766)				$ 190.65
2	W10273555		Handle (includes No.4) (stainless/satina)   (Replaces: W10127768)				$ 187.89
3	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
4	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
6	WP2156021		Trivet (3)   (Replaces: 2156021)				$ 63.27
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309604)				$ 308.19
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2309654)				$ 310.39
8	W10136733		Door Gasket, Magnetic (grey)   (Replaces: 2327162)				$ 341.89
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 23.11
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
12	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
13	WP8533988		Screw (4)   (Replaces: W10155511)			Immediately	$ 7.95

    View Diagram in Separate Window       Print Part List
