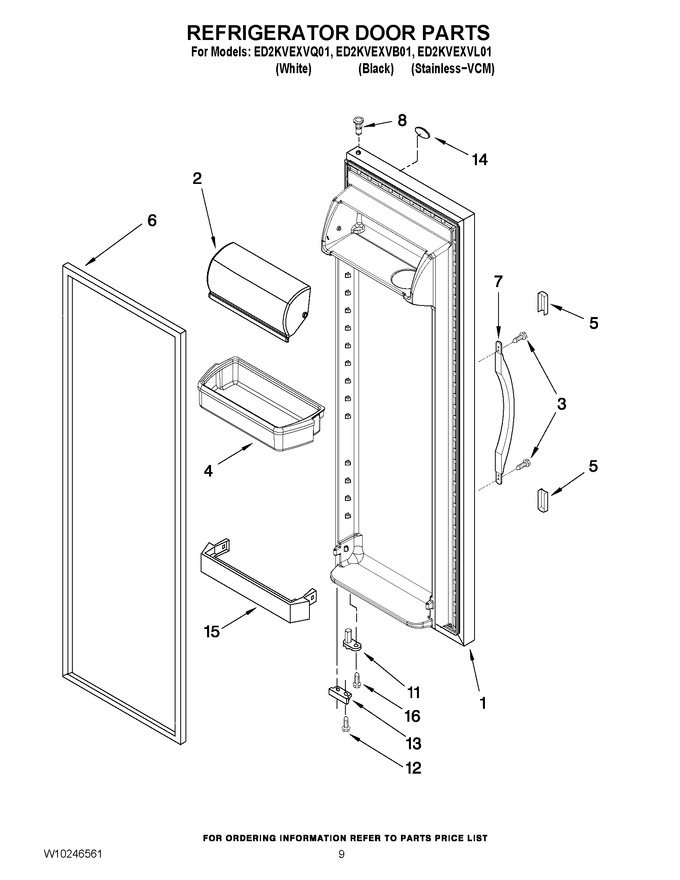

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309622W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2309622L		Refrigerator Door (includes Item 6) (stainless-vcm)		Appelez-nous	-
1	2309622B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WP489491		Screw   (Replaces: 489491)				$ 7.30
4	WP2187172		Door Bin (3)   (Replaces: 2187172)			Immediately	$ 45.09
5	2194272W		Endcap, Handle (white)				$ 5.85
5	WP2194272B		Endcap, Handle (black)   (Replaces: 2194272B)				$ 7.30
6	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 335.58
6	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 333.19
7	2304413W		Handle (white)		Appelez-nous	-
7	2304413B		Handle (black)		Appelez-nous	-
8	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
13	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
14	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
15	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
