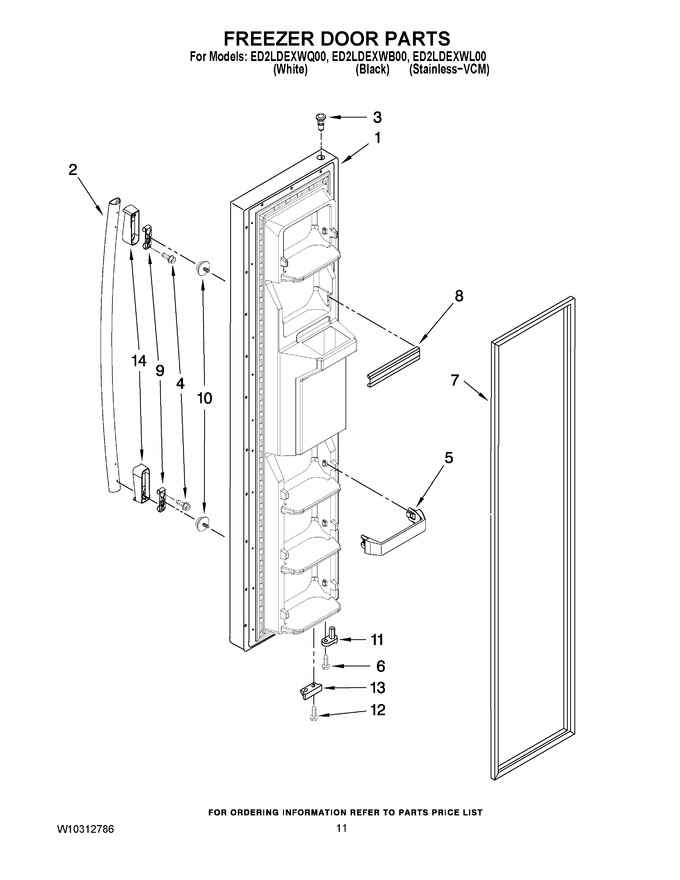

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10231653		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10231654		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
1	W10231652		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10221069		Handle (stainless/satina)		Appelez-nous	-
2	WPW10127761K		Handle (white)   (Replaces: W10127765)				$ 186.67
2	WPW10127762		Handle (black)   (Replaces: W10127766)				$ 190.65
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
4	WP8533988		Screw   (Replaces: W10155511)			Immediately	$ 7.95
5	WP2309717		Trivet (4)   (Replaces: 2309717)				$ 55.85
6	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
7	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309604)				$ 308.19
7	2159080		Door Gasket, Magnetic (black)   (Replaces: 2309654)				$ 310.39
8	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 23.11
9	WP2255411		Screw   (Replaces: 2255411)				$ 34.81
10	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	2321218W		Bracket, Door Stop (white)		Appelez-nous	-
13	W10185567		Bracket, Door Stop (black)		Appelez-nous	-
14	W10127772		End Cap (apollo Grey)				$ 49.75
14	W10127770		Endcap (black)		Appelez-nous	-
14	W10127769		Endcap (white)		Appelez-nous	-
