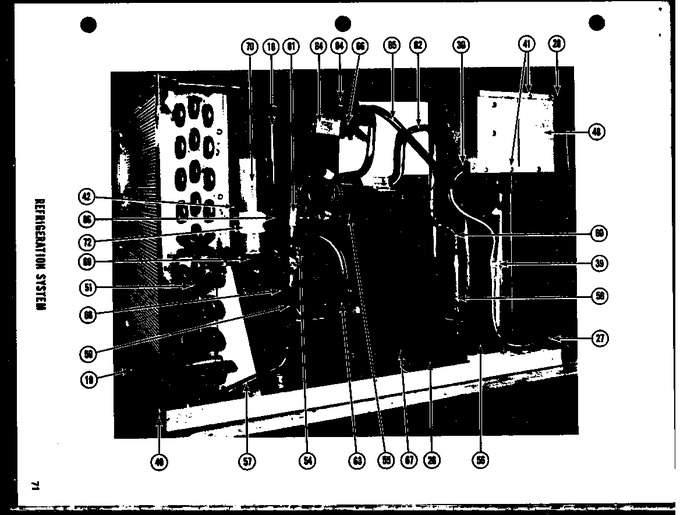

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 18 | B4798001 | Filler Block |
|
- | |||||
| 19 | A3023301 | Grommet |
|
- | |||||
| 20 | C4875704 | Weldment, Condenser Shroud |
|
- | |||||
| 26 | M0283509 | Nut |
|
- | |||||
| 26 | B5105101 | Grommet |
|
- | |||||
| 26 | A4622705 | Sleeve |
|
- | |||||
| 26 | A4641302 | Nylon Washer |
|
- | |||||
| 29 | A3030302 | Gasket |
|
- | |||||
| 30 | A3030307 | Gasket |
|
- | |||||
| 40 | M0211831 | Screw |
|
- | |||||
| 41 | W11233072 | Use M0214931 (Replaces: M0211531) |
|
Immediately | $ 14.72 | ||||
| 42 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 59 | B5159305 | Strainer |
|
- | |||||
| 62 | C5290604 | Tube, Suction |
|
- | |||||
| 63 | C5219704 | Tube, Discharge |
|
- | |||||
| 67 | D5340403 | Compressor - Copeland |
|
- | |||||
| 68 | A3045502 | Grommet |
|
- | |||||
| 69 | A4553101 | Boot Rubber K |
|
- | |||||
| 70 | C5825020 | Capacitor, Compressor Run, 35 |
|
- | |||||
| 72 | B4721901 | Strap, Capacitor |
|
- | |||||
| 86 | M0211020 | Screw |
|
- |
