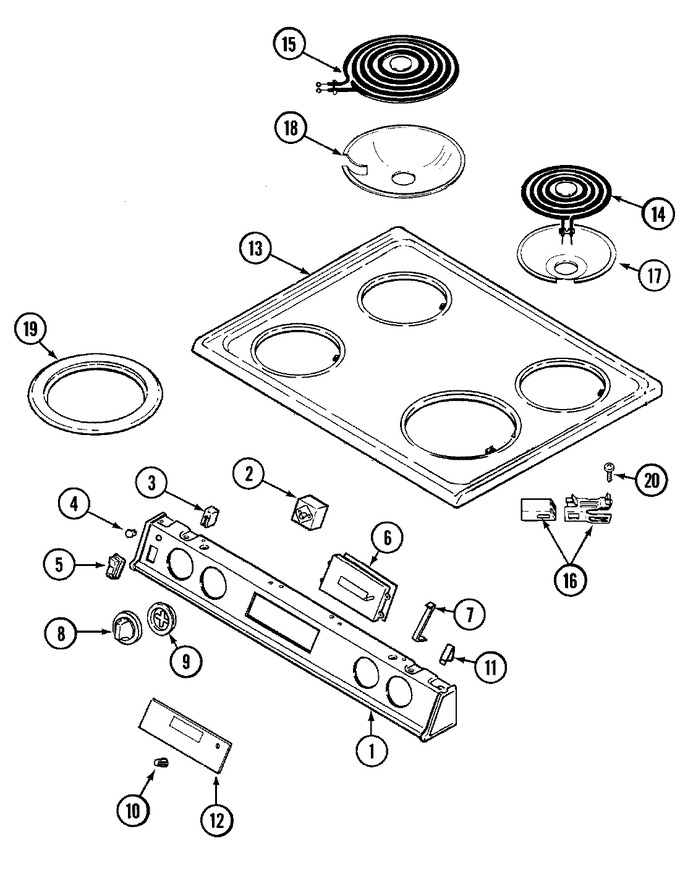

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7722P119-60 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 7.30 | |||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 64.20 | |||
| 2 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 39.00 | |||
| 3 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 123.80 | ||||
| 4 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 7.85 | ||||
| 5 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 106.58 | ||||
| 6 | 7601P207-60 | Clock | 10 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 8.18 | ||||
| 7 | 3801F222-45 | Bracket, Clock | 10 |
|
- | ||||
| 8 | 7731P082-60 | Knob, Therm/burner (blk) | 10 |
|
- | ||||
| 9 | 7740P052-60 | Bezel, Knob (blk) | 10 |
|
- | ||||
| 10 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P486-60) | 10 |
|
$ 14.15 | ||||
| 11 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 12 | 7403P336-60 | Switch, Membrane (blk) | 10 |
|
- | ||||
| 13 | 2002W084-09 | Top, Main (blk) | 10 |
|
- | ||||
| 14 | WPW10259868 | Element (6``) (Replaces: Y04000056) | 10 |
|
Immediately | $ 124.76 | |||
| 15 | WP12001560 | Element (8``) (Replaces: Y04000055) | 10 |
|
$ 200.87 | ||||
| 16 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 31.61 | |||
| 17 | 7725P038-60 | Bowl, Drip (6``solid)(blk) | 10 |
|
- | ||||
| 18 | WP74001479 | Bowl, Drip (8``)(blk) (Replaces: 7725P039-60) | 10 |
|
$ 19.28 | ||||
| 19 | 19950051A | Ring, Trim (8``) (Replaces: 7744P131-60) | 10 |
|
$ 17.41 | ||||
| 20 | 7744P130-60 | Ring, Trim (6``) | 10 |
|
- | ||||
| 20 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 8.66 | ||||
| NI | 8111P025-60 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 5175D067-60 | Harness | 10 |
|
- | ||||
| NI | 5170P147-60 | Harness, Control To Relay | 10 |
|
- | ||||
| NI | 5170P138-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| NI | 74001189 | Harness, Control Panel | 10 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
