SELECT A DIAGRAM

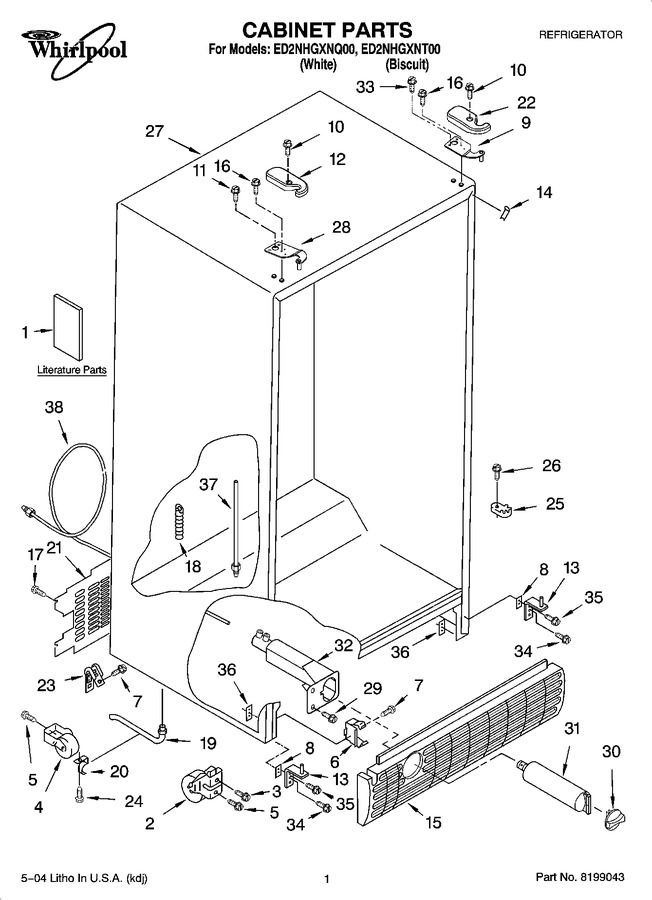

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2305764		Use & Care Guide		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	2305787		Energy Guide		Appelez-nous	-
1	2255137		Service & Wiring Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	2209697		Shim				$ 41.25
9	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
10	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
11	WP489128		Screw   (Replaces: 8281149)				$ 10.88
12	2203407T		Hinge Cover (fc) (biscuit)		Appelez-nous	-
12	WP2203407W		Hinge Cover (fc) (white)   (Replaces: 2203407W)				$ 20.75
13	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 88.90
14	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
14	2196094		Filler, Wrapper (white)		Appelez-nous	-
15	W10802713		Grille (biscuit)   (Replaces: 2198467T)				$ 121.84
15	W10802713		Grille (white)   (Replaces: 2198467W)				$ 121.84
16	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
18	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 50.90
19	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
21	WP2188756		Cover, Unit   (Replaces: 2188736)				$ 141.67
22	WP2203408W		Hinge Cover (rc) (white)   (Replaces: 2203408W)				$ 20.97
22	2203408T		Hinge Cover (rc) (biscuit)		Appelez-nous	-
23	549193		Clamp-service Cord				$ 13.39
24	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
25	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
26	WP489483		Screw   (Replaces: 489483)				$ 10.87
27	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
28	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
29	WP489500		Screw   (Replaces: 489500)				$ 7.78
30	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186494W)				$ 55.72
30	WP2186494T		Cap, Water Filter (biscuit)   (Replaces: 2186494T)				$ 11.88
31	2305768		Water Filter		Appelez-nous	-
32	WP2186443		Housing, Water Filter   (Replaces: 2186443)			Immediately	$ 97.35
33	3400858		Screw		Appelez-nous	-
34	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
35	W10856122		Screw   (Replaces: 3400103)				$ 7.76
36	WP2304249		Plate, Screw   (Replaces: 2304249)				$ 14.23
37	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
38	8201597		Tube, Filter Inlet   (Replaces: 2305536)			Immediately	$ 77.02
	N/A		Literature Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
