SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

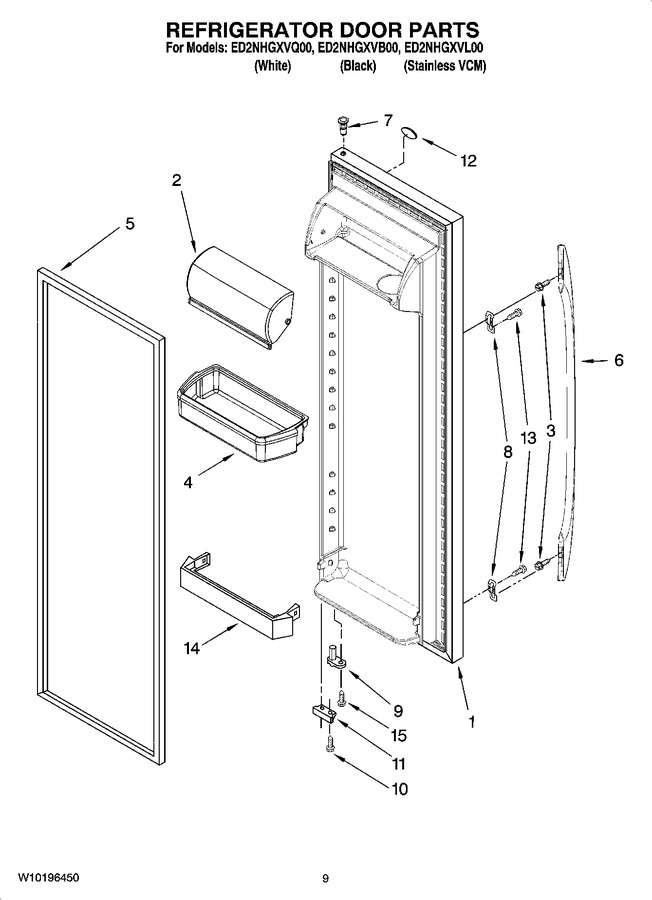

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2311657B		Refrigerator Door (includes Item 5) (black)		Appelez-nous	-
1	2311657L		Refrigerator Door (includes Item 5) (stainless-vcm)		Appelez-nous	-
1	2311657W		Refrigerator Door (includes Item 5) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	8533920		Screw				$ 5.27
4	WP2187172		Door Bin (3)   (Replaces: 2187172)			Immediately	$ 45.09
5	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 335.58
5	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 333.19
6	WPW10136231		Handle (includes 3) (black)   (Replaces: W10136231)				$ 349.51
6	W10136230		Handle (includes 3) (white)		Appelez-nous	-
7	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
8	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 10.87
11	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
11	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
13	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
14	WP2177962K		Trivet   (Replaces: 2177962)				$ 81.09
15	WP3400012		Screw   (Replaces: 3400012)				$ 7.82

    View Diagram in Separate Window       Print Part List
