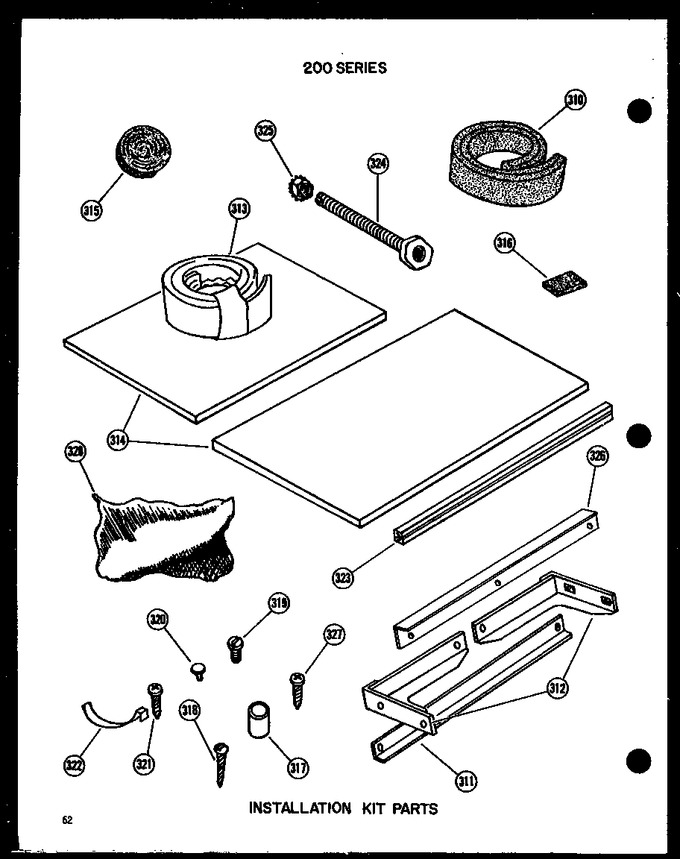

06 - Installation Kit Parts


07 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
310	A4660601		Gasket, Sash Seal Strip		Appelez-nous	-
311	B1101701		Secondary Stop		Appelez-nous	-
312	C5872102		Weldment, Angle Support, L.h.		Appelez-nous	-
312	C5872101		Weldment, Angle Support, R.h.		Appelez-nous	-
313	B1108301		Gasket		Appelez-nous	-
314	A4607701		Window Board		Appelez-nous	-
315	A3030302		Gasket		Appelez-nous	-
315	A3030307		Gasket		Appelez-nous	-
315	A3030325		Gasket, Closure Plate Flange,		Appelez-nous	-
315	A3030328		Gasket (1= 1ft.)		Appelez-nous	-
316	A4684201		Gasket-polyethylene		Appelez-nous	-
317	A4065501		Spacer K		Appelez-nous	-
318	M0212062		Screw		Appelez-nous	-
319	M0206557		Screw		Appelez-nous	-
320	M0310312		Plug		Appelez-nous	-
321	M0211530		Screw		Appelez-nous	-
322	B1100601		Spring		Appelez-nous	-
323	B4764402		Gasket		Appelez-nous	-
324	M0200003		Screw Adjusting		Appelez-nous	-
325	M0282019		Nut-keps		Appelez-nous	-
326	B1100701		Angle-top		Appelez-nous	-
327	M0211543		Screw		Appelez-nous	-
328	B1139001		Accessory Kit Q		Appelez-nous	-
NI	C4829701		Angle Support And Rod Assembly		Appelez-nous	-
NI	C4829702		Angle Support And Rod Assembly		Appelez-nous	-
NI	M0206557		Screw		Appelez-nous	-
NI	M0200003		Screw Adjusting		Appelez-nous	-
NI	M0282019		Nut-keps		Appelez-nous	-
NI	M0212062		Screw		Appelez-nous	-
NI	M0286706		Nut, Speed		Appelez-nous	-
NI	A4660601		Gasket, Sash Seal Strip		Appelez-nous	-
