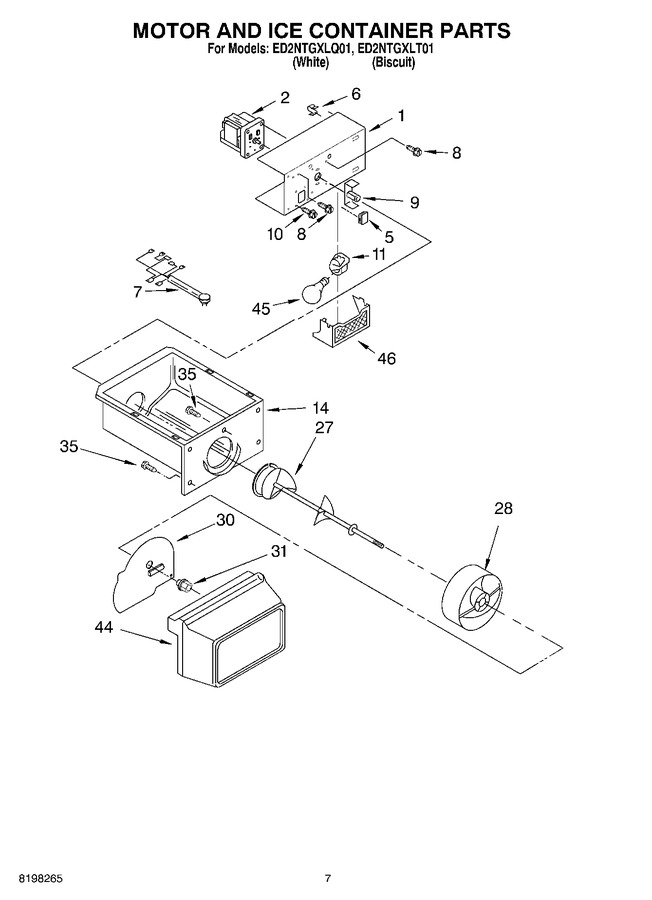

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10284487 | Bracket, Motor (Replaces: 2183728) |
|
$ 114.10 | |||||
| 2 | 2188384 | Motor, Dispenser |
|
- | |||||
| 5 | 2195013 | Plug |
|
- | |||||
| 6 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 7.75 | |||||
| 7 | 2206500 | Wiring Assembly, Ice Dispenser |
|
- | |||||
| 8 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.95 | |||||
| 9 | WPW10169511 | Coupling, Motor (Replaces: 2205716) |
|
$ 23.34 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 11 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 14 | WP2196089 | Ice Container (Replaces: 2196089) |
|
$ 209.75 | |||||
| 27 | 2196293 | Auger |
|
- | |||||
| 28 | 4388736 | Drum (Replaces: 2209781) |
|
$ 92.35 | |||||
| 30 | 2181722 | Floating Baffle |
|
$ 22.61 | |||||
| 31 | 946195 | Nut, Bearing |
|
- | |||||
| 35 | WP488787 | Screw (Replaces: 488886) |
|
$ 10.58 | |||||
| 44 | 2174351 | Front Cover Ice Container |
|
- | |||||
| 45 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 46 | WP2171706 | Light Lens, Dispenser (Replaces: 2171706) |
|
$ 91.34 |
