SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

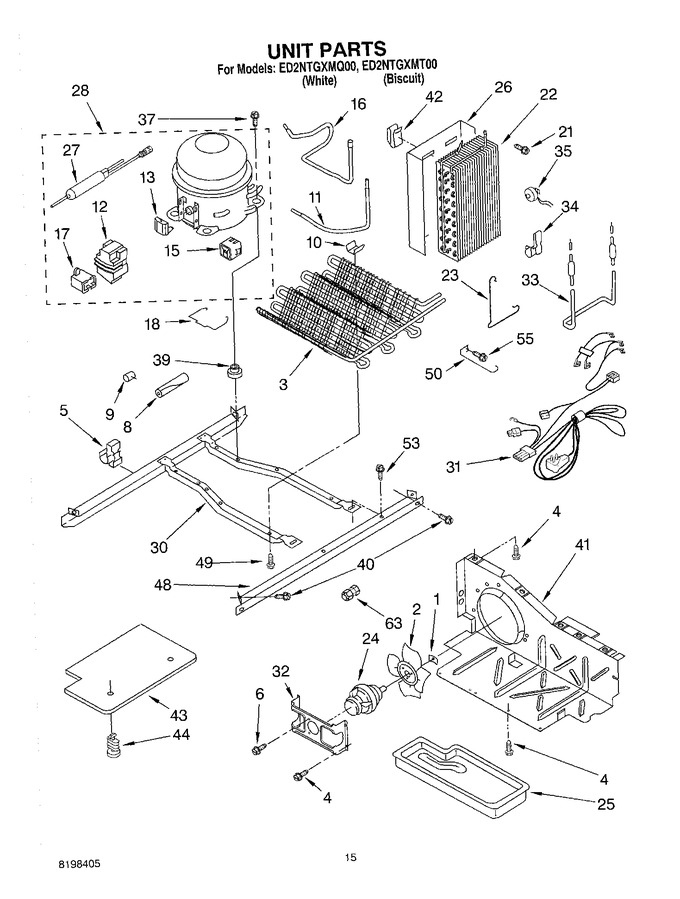

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	2190685		Fan, Blade				$ 52.00
3	2204484		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2208280		Clip, Wire & Tube		Appelez-nous	-
6	681390		Screw   (Replaces: 489099)				$ 13.06
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.73
10	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
11	2255798		Tube, Condenser To Heat Loop		Appelez-nous	-
12	WP2162358		Cover (service Compressor Only)   (Replaces: 4387731)				$ 90.75
13	4387535		Overload (service Includes Relay)   (Replaces: 4387767)				$ 181.95
15	WP2188831		Start-device, Combination (start Relay And Overload) For Production Compressor Only   (Replaces: 2220498)				$ 177.48
16	2220642		Tube Suction				$ 221.59
17	WP4387764		Capacitor (service)   (Replaces: 4387764)				$ 177.04
17	WP65889-4		Capacitor (production)   (Replaces: 2255130)			Immediately	$ 61.14
18	2255009		Strap		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489478)				$ 7.75
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 339.85
23	2161324		Clamp		Appelez-nous	-
24	W10822259		Fan, Motor   (Replaces: 2188537)			Immediately	$ 221.30
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2149293		Heat Shield		Appelez-nous	-
27	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 52.57
27	W10843121		Drier (production)   (Replaces: 2199167)			Immediately	$ 52.57
28	W10309990		Compressor (includes Items 12, 13, 15, 17, & 27) (also Order 876765 Tube Kit)   (Replaces: 2255010)			Immediately	$ 632.81
30	2304903		Unit Mounting Frame   (Replaces: 2160501)				$ 233.03
31	2187510		Unit, Harness		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
33	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 117.38
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 50.77
37	876811		Screw   (Replaces: 489373)				$ 7.42
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
39	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2182057		Unit Cover, Bottom				$ 72.28
44	489396		Clip				$ 10.72
48	2149718		Unit Mounting Rail		Appelez-nous	-
49	W11544659		Screw   (Replaces: 8281232)				$ 13.67
50	2186496		Guard, Fan		Appelez-nous	-
53	WP489427		Screw   (Replaces: 489427)				$ 7.47
55	WPW10141625		Screw   (Replaces: 488649)				$ 21.16
63	WP4373559		Connector, Water Tube   (Replaces: 2209709)				$ 77.35
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/A		Refrigerant Charge 5.0 Oz. (r-134a)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
