SELECT A DIAGRAM

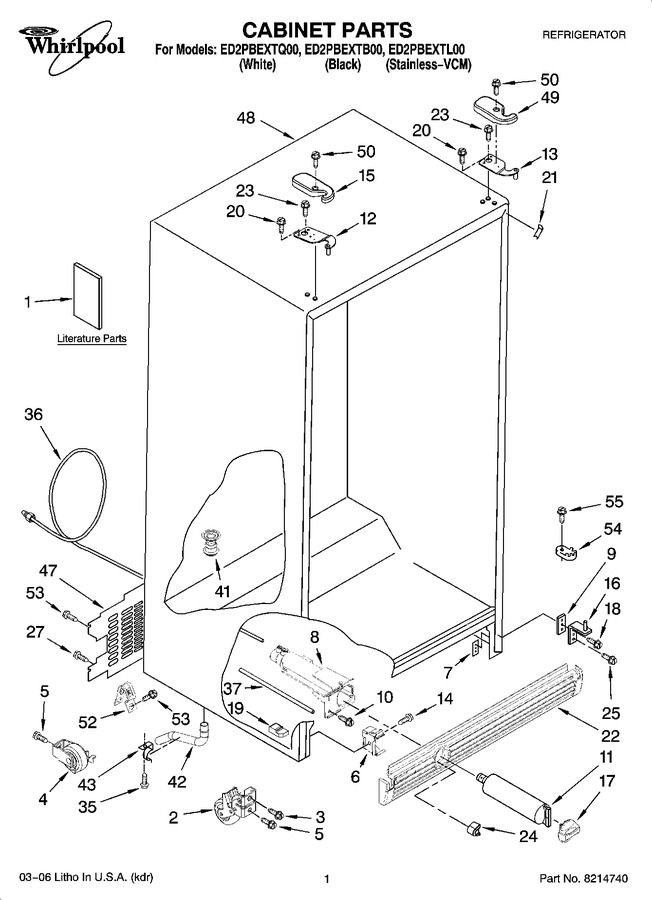

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2311445		Energy Label		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	2261037		Instruction Sheet, Door Removal		Appelez-nous	-
1	2309541		Use & Care Guide		Appelez-nous	-
1	2311816		Service & Wiring Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP2304249		Plate, Screw   (Replaces: 2304249)				$ 14.23
8	WPW10121138		Housing, Water Filter   (Replaces: 2260507)			Immediately	$ 112.91
9	2209697		Shim				$ 41.25
10	WP489500		Screw (2)   (Replaces: 489500)				$ 7.78
11	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
12	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
13	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
14	WP489128		Screw   (Replaces: 488500)				$ 10.88
15	WP2203407B		Hinge Cover (black)   (Replaces: 2203407B)				$ 19.52
15	WP2203407W		Hinge Cover (white)   (Replaces: 2203407W)				$ 20.75
16	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 88.90
17	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260518W)			Immediately	$ 31.90
17	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260518B)			Immediately	$ 28.26
18	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 29.09
19	2260519		Block, Housing Support		Appelez-nous	-
20	3400858		Screw		Appelez-nous	-
21	W11252732		Filler, Wrapper (black)   (Replaces: 2201017)				$ 12.45
21	WPW10283959		Filler, Wrapper (white)   (Replaces: 2201014)				$ 7.82
22	WPW10283955		Grille (white)   (Replaces: 2260501W)				$ 119.15
22	2260501B		Grille (black)		Appelez-nous	-
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
24	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
24	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
25	W10856122		Screw (2)   (Replaces: 3400103)				$ 7.76
27	WP488488		Screw   (Replaces: 489290)				$ 7.68
35	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
36	WP2304697		Tube, Filter Inlet   (Replaces: 2304697)				$ 137.59
37	WPW10350006		Tube, Filter Outlet   (Replaces: 2304708)				$ 115.54
41	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 50.90
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
47	WP2188756		Cover, Unit   (Replaces: 2204202)				$ 141.67
49	WP2203408W		Hinge Cover (white)   (Replaces: 2203408W)				$ 20.97
49	WP2203408B		Hinge Cover (black)   (Replaces: 2203408B)				$ 18.63
50	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
52	549193		Clamp-service Cord				$ 13.39
53	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
54	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
55	WP489483		Screw (2)   (Replaces: 489483)				$ 10.87

    View Diagram in Separate Window       Print Part List
