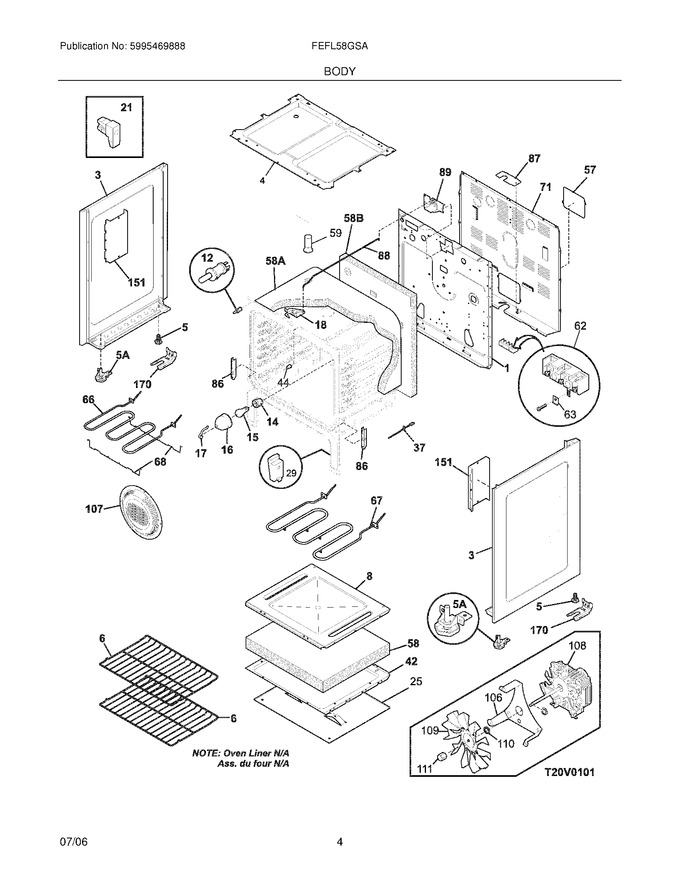

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401800		Panel,main Back		Appelez-nous	-
3	316400143		Panel,bodyside ,white ,lh   (Replaces: 316400117)				$ 156.50
3	316400142		Panel,bodyside ,white ,rh   (Replaces: 316400116)				$ 156.50
4	5304522901		Burner Box   (Replaces: 316201401)				$ 95.21
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 30.55
6	316404500		Rack,oven				$ 124.95
8	316400601		Panel,oven Bottom				$ 139.86
12	316445501		Switch,oven Light ,door Frame			Immediately	$ 100.01
14	316116400		Receptacle,oven Light			Immediately	$ 62.33
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 19.07
17	316087500		Retainer,lens				$ 63.00
21	316408000		Clip,bodyside				$ 20.22
25	316406200		Shield,heat ,lower				$ 97.74
29	807047102		Glide,drawer ,front   (Replaces: 316407301)			Immediately	$ 26.47
42	316407700		Shield,wool ,lower				$ 145.77
44	316246501		Spacer,oven Door				$ 12.13
57	316457801		Cover,access   (Replaces: 316457800)				$ 14.32
58	316403800		Insulation,oven Bottom		Appelez-nous	-
59	316073606		Tube,oven Vent				$ 63.00
62	5304409888		Terminal Block Kit			Immediately	$ 29.66
63	316278800		Plate,grounding Strap		Appelez-nous	-
66	316203200		Element-broil			Immediately	$ 182.72
67	316075103		Element-bake			Immediately	$ 47.07
68	316404002		Support,element ,broil   (Replaces: 316404000)				$ 9.72
71	316422304		Shield,rear Wall				$ 115.53
86	316441300		Receptacle,hinge				$ 24.41
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316203500		Rod,auto Latch				$ 80.33
106	316404100		Bracket,motor Mtg.				$ 70.78
107	316026701		Cover,fan				$ 454.32
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 32.34
110	316008401		Washer,flat   (Replaces: 316136500)				$ 12.60
111	316136600		Nut,fan Retainer			Immediately	$ 21.26
151	316404600		Shield,bodyside				$ 49.30
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 14.32
170	316112500		Template,anti-tip				$ 3.94
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 21.01
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
58A	316406604		Insulation,oven Wrapper   (Replaces: 316406600)			Immediately	$ 77.52
58B	316406500		Insulation,oven Back				$ 98.44
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316407201)			Immediately	$ 16.76
F108	5304467898		Motor,fan   (Replaces: 316415800)			Immediately	$ 250.74
F18	316405800		Latch Assembly,oven Door			Immediately	$ 63.04
F37	316490001		Probe,oven Temp   (Replaces: 316217001)			Immediately	$ 76.44
F89	5304528973		Motor,latch/lock   (Replaces: 316415400)			Immediately	$ 58.16
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 16.91
NI	316231800		Cover,hole ,conv. Element		Appelez-nous	-
NI	5303321319		Paint,touch-up ,white			Immediately	$ 14.96
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021132		Screw,8-18 X 11/16 ,black				$ 14.32
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 14.96
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 14.96
NI	5308014215		Screw`6-20 X 0.312				$ 2.53
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 12.60
NI	316085600		Insulator		Appelez-nous	-
NI	316418901		Screw,trilobe ,10-32 X 5/16``				$ 15.75
NI	316416449		Harness,wiring ,main		Appelez-nous	-
NI	316045000		Clip,wiring Harness ,green ,main Top		Appelez-nous	-
