01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)

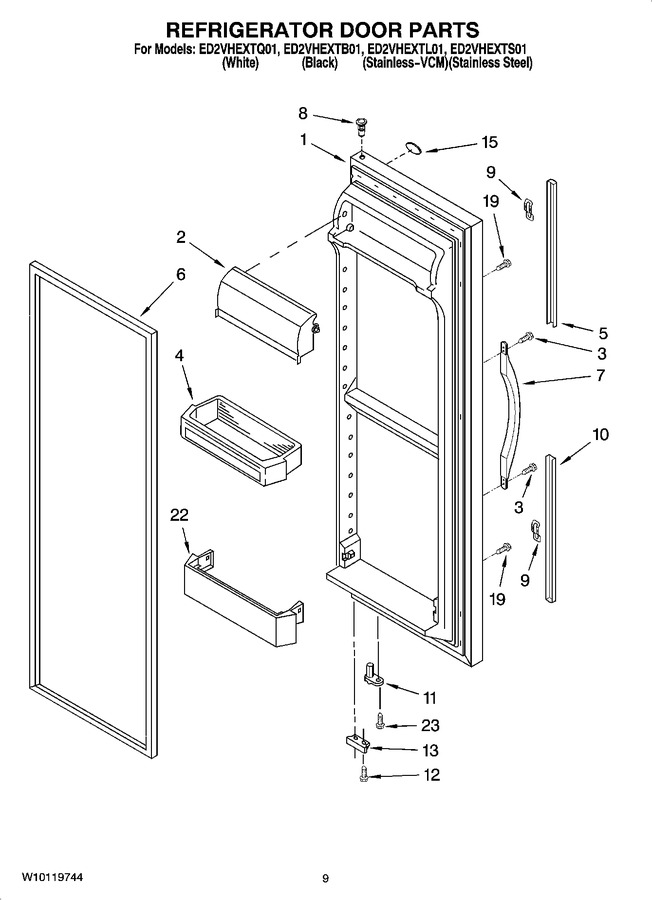

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309598W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2309598B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2309598L		Refrigerator Door (includes Item 6) (stainless-vcm)		Appelez-nous	-
1	2311657S		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WP489491		Screw   (Replaces: 489491)				$ 7.30
4	WP2187172		Door Bin (3)   (Replaces: 2187172)			Immediately	$ 45.09
5	WP2194971B		Extension, Top (black)   (Replaces: 2194971B)				$ 111.96
5	2194971W		Extension, Top (white)				$ 44.85
6	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 333.19
6	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 335.58
7	2186649W		Handle (includes 3) (white)				$ 70.49
7	2186649B		Handle (includes 3) (black)				$ 72.96
8	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
9	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
10	2194969W		Extension, Bottom (white)				$ 5.51
10	WP2194969B		Extension, Bottom (black)   (Replaces: 2194969B)				$ 122.22
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
13	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
15	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
19	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
22	WP2177962K		Trivet   (Replaces: 2177962)				$ 85.14
23	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
