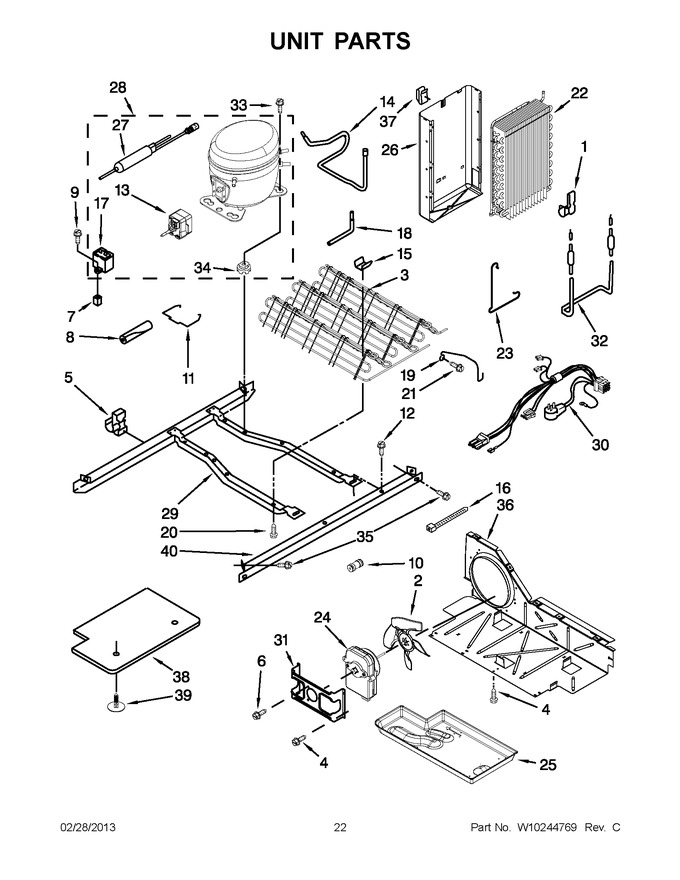

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly   (Replaces: W10222349)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2208280		Clip, Wire And Tube		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	509812		Grommet, Screw		Appelez-nous	-
8	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 20.30
9	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
10	WPW10334458		Connector, Water Tube   (Replaces: W10334458)				$ 21.59
11	2212996		Bale Strap   (Replaces: 2255113)				$ 12.11
12	WP489427		Screw   (Replaces: 489427)				$ 7.47
13	WP2188831		Device, Start   (Replaces: 2188831)				$ 177.48
14	2220642		Tube Suction				$ 221.59
15	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 18.46
16	WPW10339879		Tie-wire   (Replaces: 2263990)				$ 7.90
17	WP65889-4		Capacitor   (Replaces: 2252799)			Immediately	$ 61.14
18	2325479		Tube, Process		Appelez-nous	-
19	2260516		Guard, Fan		Appelez-nous	-
20	W11544659		Screw   (Replaces: 8281232)				$ 13.67
21	WP489478		Screw   (Replaces: 489478)				$ 7.75
22	WP2188822		Evaporator, Fc   (Replaces: 2188822)			Immediately	$ 339.85
23	2161324		Clip, Defrost Heater		Appelez-nous	-
24	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	WPW10194474		Heat Shield And Drain Pan   (Replaces: W10194474)				$ 119.53
27	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
28	W10355489		Compressor (also Order 876765 Tube Kit)   (Replaces: W10144769)				$ 646.20
29	2304903		Frame, Unit Mounting				$ 233.03
30	WPW10309395		Harness, Unit   (Replaces: W10309395)				$ 293.67
31	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
32	WP2323197		Hearter, Defrost   (Replaces: 2188174)			Immediately	$ 117.38
33	876811		Screw   (Replaces: 489373)				$ 7.42
34	876811		Grommet   (Replaces: 1100826)				$ 7.42
35	489340		Bolt		Appelez-nous	-
36	W10332806		Air Baffle				$ 102.82
37	2155547		Clip, Heat Shield		Appelez-nous	-
38	W10466699		Unit Cover, Bottom		Appelez-nous	-
39	489396		Clip				$ 10.72
40	WPW10196323		Unit Mounting Rail   (Replaces: W10196323)				$ 118.94
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access			Immediately	$ 128.09
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 130.71
NI	876764		Valve, Access			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.0oz. (r-134a))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
