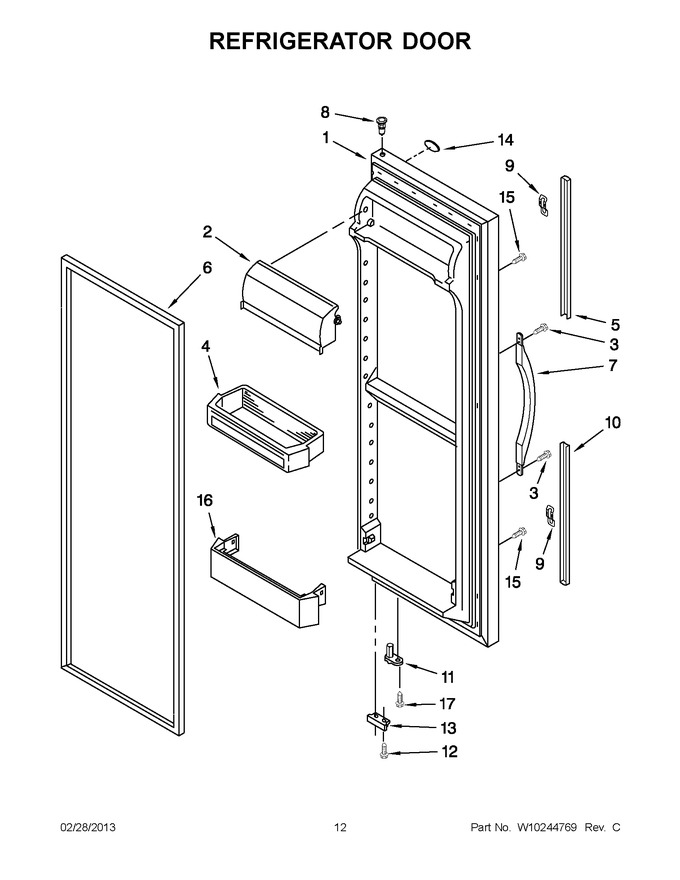

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309598W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2309598B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2309598L		Refrigerator Door (includes Item 6) (stainless-vcm)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WP489491		Screw   (Replaces: 489491)				$ 7.30
4	WP2187172		Door Bin   (Replaces: 2187172)			Immediately	$ 45.09
5	2194706W		Extension, Top (white)				$ 44.81
5	2194706B		Extension, Top (black)				$ 44.29
6	2159073		Door Gasket, Magnetic (beige)   (Replaces: 2309600)				$ 333.19
6	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 335.58
7	W10285542		Handle (white)				$ 71.46
7	W10285540		Handle (black)				$ 71.85
8	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
9	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
10	2194705W		Extension, Bottom (white)				$ 48.88
10	2194705B		Extension, Bottom (black)				$ 47.36
11	WP2182179		Black   (Replaces: 2182178)			Immediately	$ 7.20
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	W10185567		Bracket, Door Stop		Appelez-nous	-
13	W10185566		Bracket, Door Stop (silver)		Appelez-nous	-
14	WPW10511972		Nameplate (grey)   (Replaces: W10511972)				$ 79.55
14	WPW10511975		Nameplate (white)   (Replaces: W10511975)				$ 80.84
15	WP3400852		Screw 8-18 X 5/8   (Replaces: 3400852)				$ 10.33
16	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26

    View Diagram in Separate Window       Print Part List
