ED5CHQXKB01 | Leon's : Appliance Model Lookup

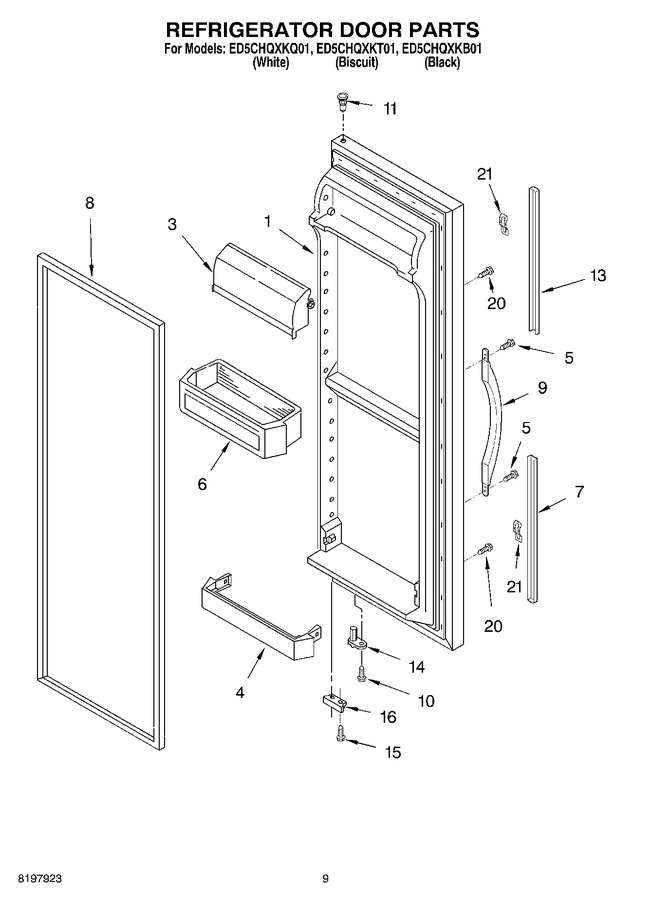

Diagram #	Part Number	Description	Availability	Ships	Price
1	2206682T	Refrigerator Door (includes Item No.8) (biscuit)	Appelez-nous	-
1	2206682B	Refrigerator Door (includes Item No.8) (black)	Appelez-nous	-
1	2206682W	Refrigerator Door (includes Item No.8) (white)	Appelez-nous	-
3	WP2256101	Door, Compartment (Replaces: 2177105)		Immediately	$ 85.16
4	WP2156022	Trivet, Shelf (Replaces: 2156022)		Immediately	$ 72.80
5	WP489491	Screw (Replaces: 489491)			$ 6.95
6	WP2203828	Shelf Bin (3) (Replaces: 2203828)			$ 95.52
7	2194969T	Extension, Bottom (biscuit)	Appelez-nous	-
7	WP2194969B	Extension, Bottom (black) (Replaces: 2194969B)			$ 116.40
7	2194969W	Extension, Bottom (white)			$ 5.51
8	2159075	Door Gasket, Magnetic (mist Beige) (Replaces: 2196243)		Immediately	$ 317.14
8	2159083	Door Gasket, Magnetic (black) (Replaces: 2196241)			$ 251.49
9	2186649T	Handle, Center (biscuit)	Appelez-nous	-
9	2186649W	Handle, Center (white)			$ 70.49
9	2186649B	Handle, Center (black)			$ 72.96
10	WP3400012	Screw (Replaces: 3400012)			$ 7.82
11	WP2182181	Thimble, Top (Replaces: 2182180)			$ 7.76
13	2194973T	Extension, Top (biscuit)	Appelez-nous	-
13	2194973W	Extension, Top (white)			$ 5.65
13	2194973B	Extension, Top (black)	Appelez-nous	-
14	WP2182179	Door Closer, Upper Cam (Replaces: 2182178)		Immediately	$ 6.39
15	WP489483	Screw (Replaces: 489420)			$ 10.87
16	WP2206629B	Bracket, Door Stop (black) (Replaces: 2206629B)			$ 40.03
16	WP2206629B	Bracket, Door Stop (chrome) (Replaces: 2206629)			$ 40.03
20	WP3400852	Screw (Replaces: 3400852)			$ 9.84
21	WP2195327	Clip (4) (Replaces: 2195327)			$ 7.40
