SELECT A DIAGRAM

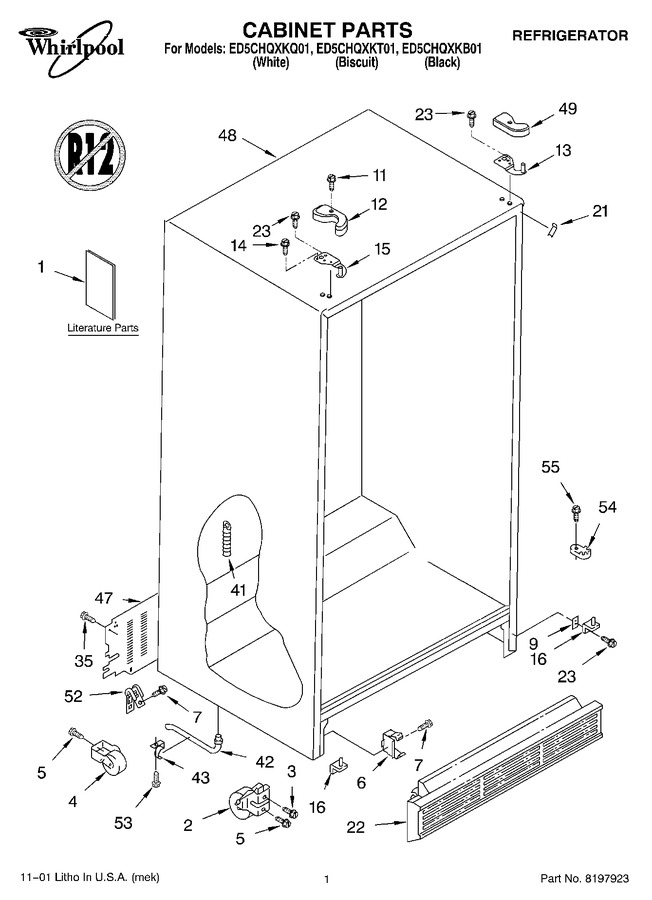

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2219949		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	LIT2220018		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2216342		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
9	WP2181911		Shim   (Replaces: 2156056)				$ 33.21
11	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
12	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
13	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
14	WP489128		Screw   (Replaces: 8281149)				$ 10.88
15	2203407T		Hinge Cover (fc) (biscuit)		Appelez-nous	-
15	WP2203407W		Hinge Cover (fc) (white)   (Replaces: 2203407W)				$ 20.75
15	WP2203407B		Hinge Cover (fc) (black)   (Replaces: 2203407B)				$ 19.52
16	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 88.90
21	2196094		Filler, Wrapper (white)		Appelez-nous	-
21	2196097		Filler, Wrapper (black)		Appelez-nous	-
21	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
22	WPW10283946		Grille (white)   (Replaces: 2198470W)				$ 143.52
22	WPW10283946		Grille (black)   (Replaces: 2198470B)				$ 143.52
22	W10283947		Grille (biscuit)   (Replaces: 2198470T)				$ 35.89
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
35	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
41	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 50.90
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
47	WP2188755		Cover, Unit   (Replaces: 2204203)				$ 135.91
48	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
49	2203408T		Hinge Cover (rc) (biscuit)		Appelez-nous	-
49	WP2203408W		Hinge Cover (rc) (white)   (Replaces: 2203408W)				$ 20.97
49	WP2203408B		Hinge Cover (rc) (black)   (Replaces: 2203408B)				$ 18.63
52	549193		Clamp-service Cord				$ 13.39
53	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
54	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
55	WP489483		Screw   (Replaces: 489483)				$ 10.87

    View Diagram in Separate Window       Print Part List
