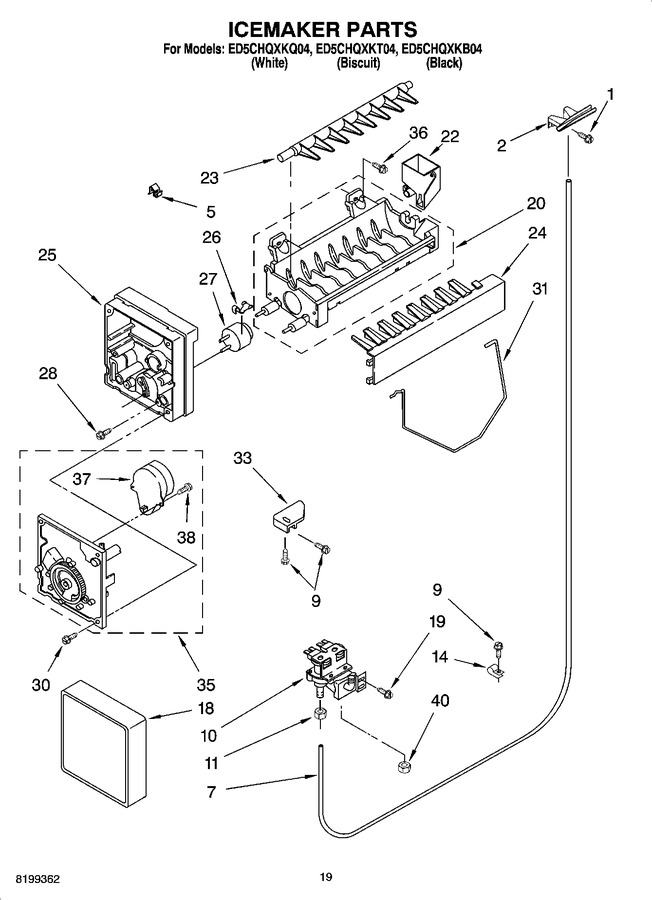

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 489478)				$ 7.75
2	W11505385		Chute, Water   (Replaces: 2209774)				$ 33.64
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
7	W10823511		Tube, Water   (Replaces: 2223137)			Immediately	$ 32.41
9	WP489478		Screw   (Replaces: 489478)				$ 7.75
10	W10853654		Valve, Solenoid   (Replaces: 2188924)				$ 157.68
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.97
14	WP488366		Tube Clamp   (Replaces: 489385)				$ 11.18
18	WPW10289690		Cover   (Replaces: 2174155)			Immediately	$ 8.40
19	WPW10141625		Screw   (Replaces: 488649)				$ 21.16
20	WPW10190929		Mold & Heater Assembly (also Order 542638)   (Replaces: 628228)				$ 233.15
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 51.19
23	WP627843		Ejector   (Replaces: 627843)				$ 83.60
24	WP2182124		Ice Striper   (Replaces: 2182124)				$ 86.05
25	WP2195914		Support   (Replaces: 2194712)				$ 104.57
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.05
27	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 628397)				$ 109.18
28	8533917		Screw				$ 13.37
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	W11807379		Shut Off Arm   (Replaces: 2209675)			Immediately	$ 60.20
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 32.17
35	8201515		Module Assembly (includes Items 37 And 38)   (Replaces: 626678)			Immediately	$ 141.64
36	WP488163		Screw   (Replaces: 488208)				$ 7.54
37	W10190935		Motor   (Replaces: 626676)			Immediately	$ 110.07
38	489136		Screw				$ 10.29
40	1129179		Nut, Compression		Appelez-nous	-
100	4317943		Complete Icemaker Assembly			Immediately	$ 188.95
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	350956		Enamel, Almond (12 Oz. Spray Can)				$ 51.44
	N/A		Torx Screw Wrench		Appelez-nous	-
	350942		Primer, White (12 Oz. Spray Can)				$ 89.66
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 26.45
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.07
	WPW10312300		Ice Container Assembly   (Replaces: 2209780)				$ 369.61
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30

    View Diagram in Separate Window       Print Part List
