SELECT A DIAGRAM

01 - Base Assembly & Components


02 - Blower, Magnetron & Exhaust Components


03 - Built-in Trim Kit


04 - Cabinet & Trim


05 - Control Panel & Timer (cme400)


06 - Door Assembly


07 - Oven Cavity & Components (prior To 01)


08 - Oven Cavity & Components (series 01)


09 - Turn Tray & Supplies

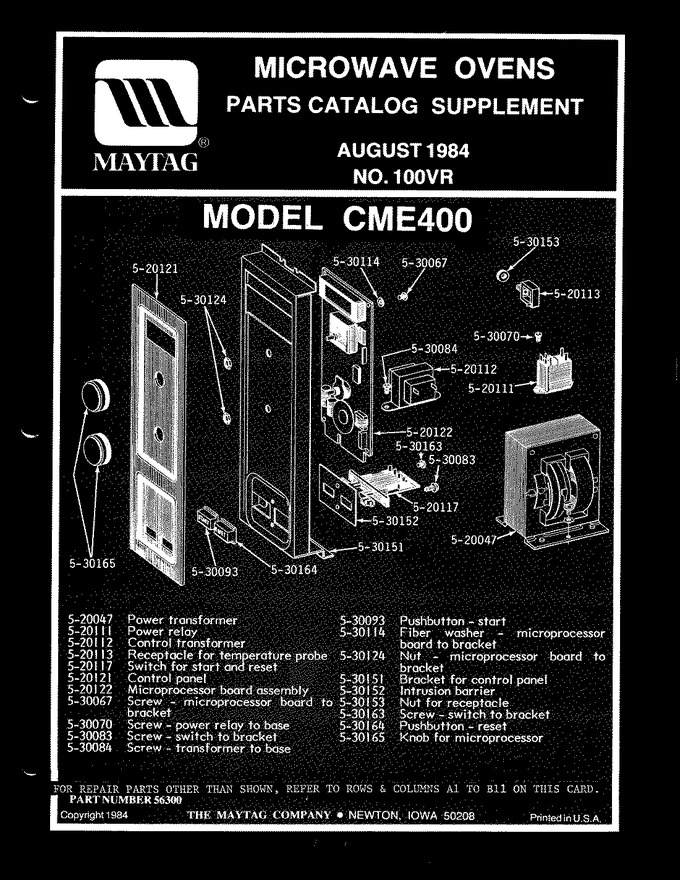

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	520047		Power Transformer	00	Appelez-nous	-
2	520111		Power Relay	00	Appelez-nous	-
3	520112		Microprocessor Transformer	00	Appelez-nous	-
4	520113		Receptacle	00	Appelez-nous	-
5	520117		Switch For Start And Reset	00	Appelez-nous	-
6	520121		Control Panel	00	Appelez-nous	-
7	520122		Microprocessor Board Assm	00	Appelez-nous	-
8	530067		Screw, No.5-40 X 1/4 Inch	00	Appelez-nous	-
9	530070		Screw, No.6-32 X 3/8 Inch	00	Appelez-nous	-
10	WP12990527		Screw   (Replaces: 530083)	00		Immediately	$ 7.88
11	530084		Screw, No.8-32 X 1/4 Inch	00	Appelez-nous	-
12	530093		Push Button - Start	00	Appelez-nous	-
13	530114		Fiber Washer	00	Appelez-nous	-
14	530124		Nut	00	Appelez-nous	-
15	530151		Bracket For Control Panel	00	Appelez-nous	-
16	530152		Intrusion Barrier	00	Appelez-nous	-
17	530153		Nut For Receptacle	00	Appelez-nous	-
18	530163		Screw-switch To Bracket	00	Appelez-nous	-
19	530164		Push Button - Reset	00	Appelez-nous	-
20	530165		Knob For Microprocessor	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
