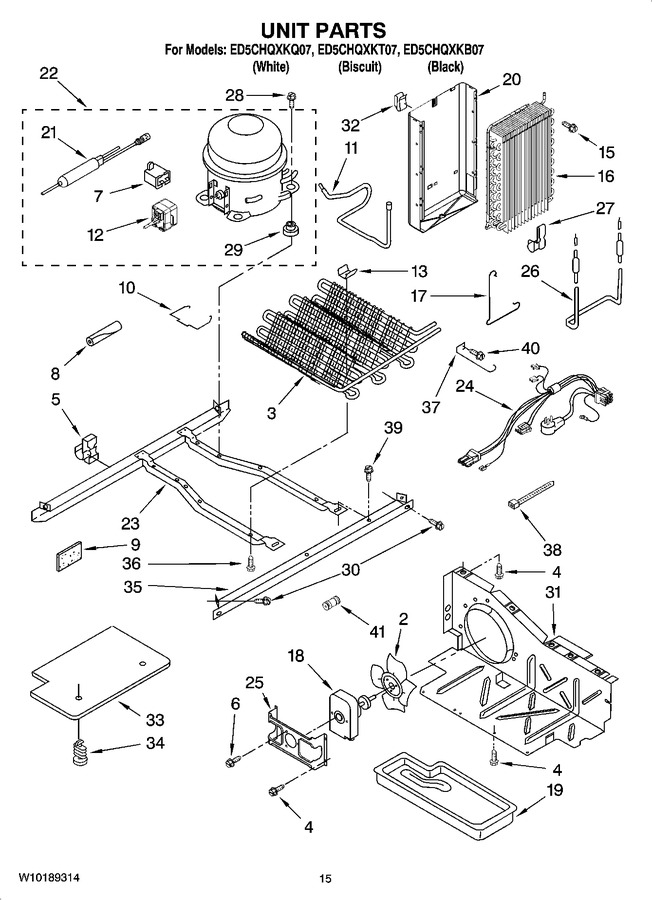

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 23.99 | ||||
| 3 | 2324712 | Condenser Assembly (also Order 1) (Replaces: W10121487) |
|
$ 308.05 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 5 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.57 | |||||
| 7 | WP65889-4 | Capacitor (Replaces: 2252799) |
|
Immediately | $ 61.14 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 9 | W11553819 | Insulation, Sound Dampening (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 10 | 2212996 | Bale Strap (Replaces: 2255113) |
|
$ 12.11 | |||||
| 11 | 2313230 | Tube Suction |
|
- | |||||
| 12 | WP2313162 | Start-device, Combination (start Relay And Overload) (Replaces: 2313162) |
|
$ 184.54 | |||||
| 13 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 18.46 | |||||
| 15 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 16 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 363.32 | ||||
| 17 | 2161324 | Clamp |
|
- | |||||
| 18 | W10124096 | Fan, Motor |
|
Immediately | $ 112.20 | ||||
| 19 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 20 | 2217194 | Heat Shield |
|
- | |||||
| 21 | WPW10143759 | Drier (production) (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 21 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 22 | W10120463 | Compressor (includes Items 12, 21 & 29) (also Order 876765 Tube Kit) |
|
- | |||||
| 23 | 2304904 | Unit Mounting Frame |
|
- | |||||
| 24 | 2187510 | Unit, Harness |
|
- | |||||
| 25 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 12.31 | |||||
| 26 | WP2323198 | Heater, Defrost (Replaces: 2323198) |
|
Immediately | $ 90.70 | ||||
| 27 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 28 | W11661574 | Screw (Replaces: 489473) |
|
$ 13.61 | |||||
| 29 | 4388295 | Grommet (4) (production) |
|
$ 118.88 | |||||
| 29 | W11661108 | Grommet (4) (service) (Replaces: 2183042) |
|
$ 14.49 | |||||
| 30 | 489340 | Screw |
|
- | |||||
| 31 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 96.38 | |||||
| 32 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 33 | 2304899 | Unit Cover, Bottom |
|
- | |||||
| 34 | 489396 | Clip |
|
$ 10.72 | |||||
| 35 | 2305374 | Unit Mounting Rail |
|
$ 80.64 | |||||
| 36 | W11544659 | Screw (Replaces: 8281232) |
|
$ 13.67 | |||||
| 37 | 1110663 | Guard, Fan |
|
- | |||||
| 38 | WPW10339879 | Strap (Replaces: 2172840) |
|
$ 7.90 | |||||
| 39 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 40 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 21.16 | |||||
| 41 | WPW10334458 | Connector, Water Tube (Replaces: 2320322) |
|
$ 21.59 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 130.71 | ||||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978028 | Valve, Access (1/2) |
|
- | ||||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | ||||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 |
