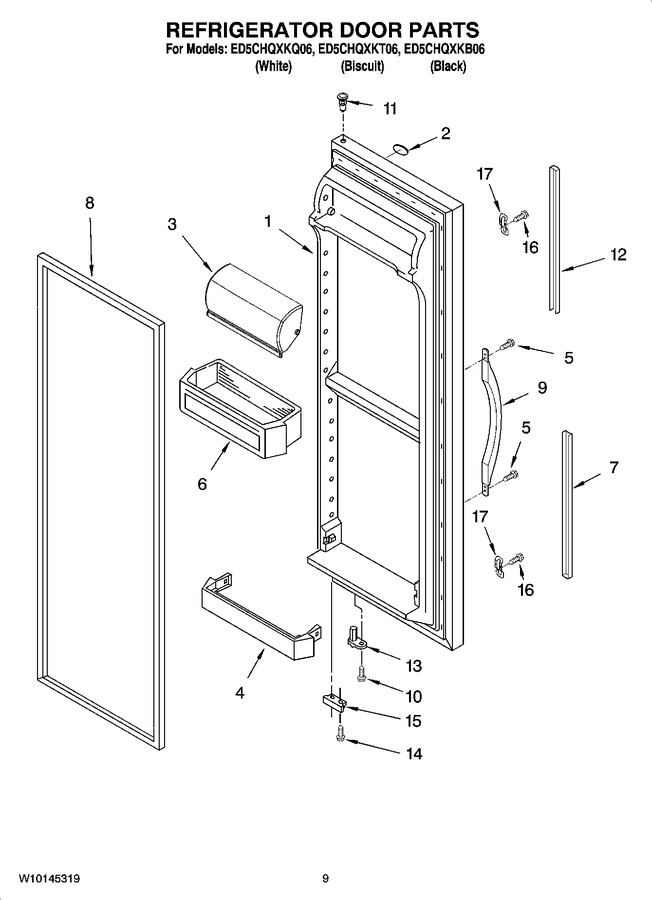

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206682T		Refrigerator Door (includes Item 8) (biscuit)		Appelez-nous	-
1	2206682B		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
1	2206682W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
2	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2156022		Trivet   (Replaces: 2156022)			Immediately	$ 72.80
5	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	WP2203828		Door Bin (3)   (Replaces: 2203828K)				$ 100.30
7	2194969T		Extension, Bottom (biscuit)		Appelez-nous	-
7	WP2194969B		Extension, Bottom (black)   (Replaces: 2194969B)				$ 122.22
7	2194969W		Extension, Bottom (white)				$ 5.51
8	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
8	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
9	2186649T		Handle, Center (biscuit)		Appelez-nous	-
9	2186649W		Handle, Center (white)				$ 70.49
9	2186649B		Handle, Center (black)				$ 72.96
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
12	2194973T		Extension, Top (biscuit)		Appelez-nous	-
12	2194973W		Extension, Top (white)				$ 5.65
12	2194973B		Extension, Top (black)		Appelez-nous	-
13	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
15	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
16	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
17	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
