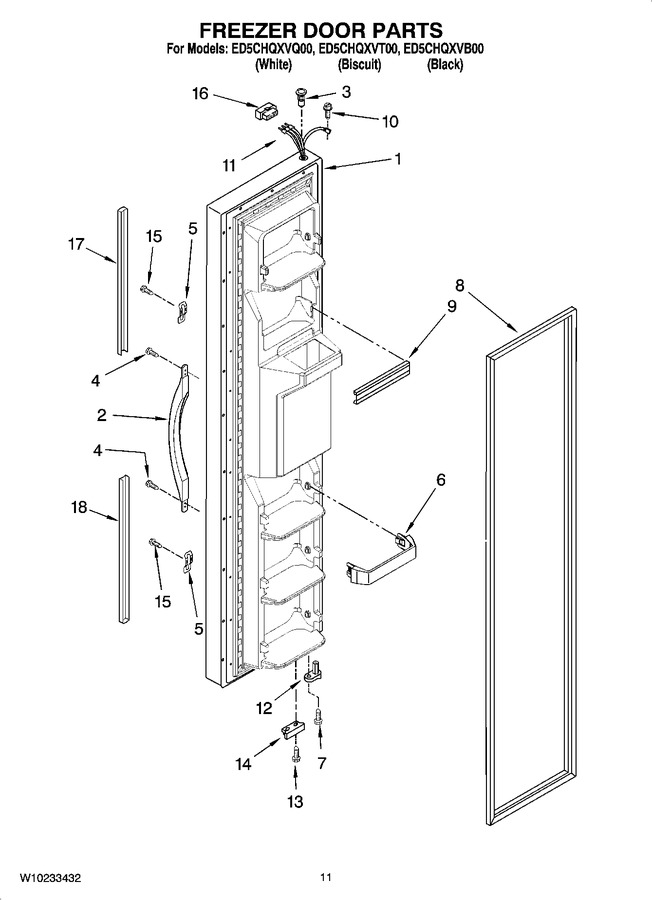

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10153760		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10153761		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10153762		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	2186649T		Handle (includes 4) (biscuit)		Appelez-nous	-
2	2186649W		Handle (includes 4) (white)				$ 70.49
2	2186649B		Handle (includes 4) (black)				$ 72.96
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2195327		Clip   (Replaces: 2195327)				$ 7.40
6	WP2309718		Trivet (4)   (Replaces: 2309718)				$ 58.56
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 316.66
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309532)				$ 310.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 23.11
10	WP489464		Screw   (Replaces: 3400896)			Immediately	$ 7.83
11	2311641		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
15	WP3400852		Screw (4)   (Replaces: 3400852)				$ 9.84
16	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
17	2194973B		Trim, Upper (black)		Appelez-nous	-
17	2194973W		Trim, Upper (white)				$ 5.65
17	2194973T		Trim, Upper (bisquit)		Appelez-nous	-
18	WP2194969B		Trim, Lower (black)   (Replaces: 2194969B)				$ 116.40
18	2194969W		Trim, Lower (white)				$ 5.51
18	2194969T		Trim, Lower (bisquit)		Appelez-nous	-
