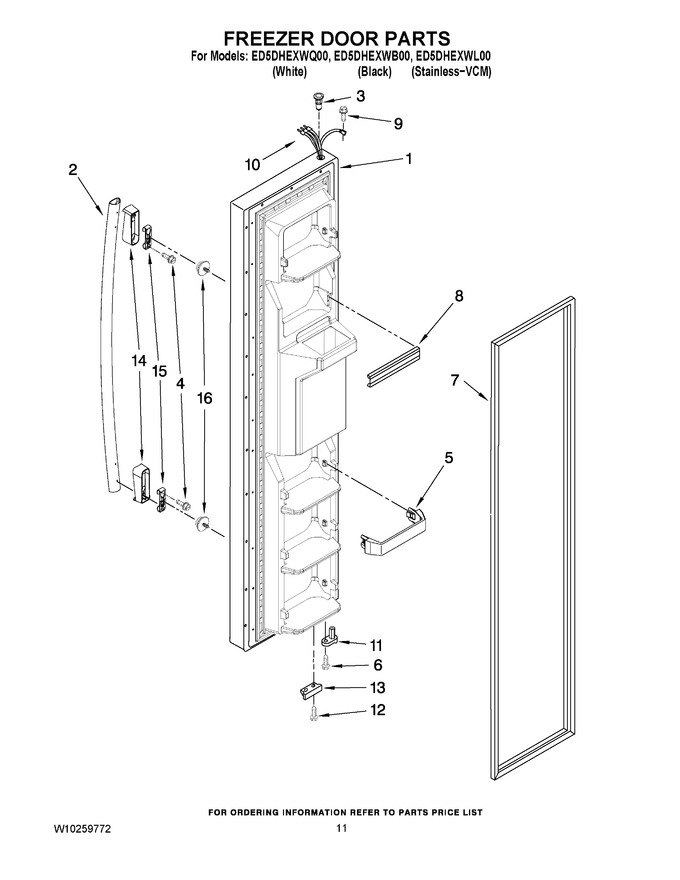

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10231643 | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | W10231644 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless-vcm) |
|
- | |||||
| 1 | W10231642 | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 2 | WPW10127761K | Handle (white) (Replaces: W10127765) |
|
$ 196.00 | |||||
| 2 | WPW10127762 | Handle (black) (Replaces: W10127766) |
|
$ 200.18 | |||||
| 2 | W10273555 | Handle (stainless) (Replaces: W10127768) |
|
$ 197.28 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 8.15 | |||||
| 4 | WP8533988 | Screw (Replaces: W10155511) |
|
Immediately | $ 8.78 | ||||
| 5 | WP2309718 | Trivet (4) (Replaces: 2309718) |
|
$ 61.49 | |||||
| 6 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 7 | 2159074 | Door Gasket, Magnetic (mist Beige) (Replaces: 2309532) |
|
$ 325.70 | |||||
| 7 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2309533) |
|
$ 332.49 | |||||
| 8 | WPW10307490 | Trim, Door Shelf (Replaces: 2209681) |
|
Immediately | $ 24.27 | ||||
| 9 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 10 | 2311641 | Wire Harness |
|
- | |||||
| 11 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 12 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 13 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 42.79 | |||||
| 13 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 42.79 | |||||
| 14 | W10152862 | Endcap (nickel Alloy) |
|
- | |||||
| 14 | W10127769 | Endcap (white) |
|
- | |||||
| 14 | W10127770 | Endcap (black) |
|
- | |||||
| 15 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 36.55 | |||||
| 16 | WPW10288153 | Screw, Mounting (Replaces: W10129563) |
|
Immediately | $ 9.65 |
