SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

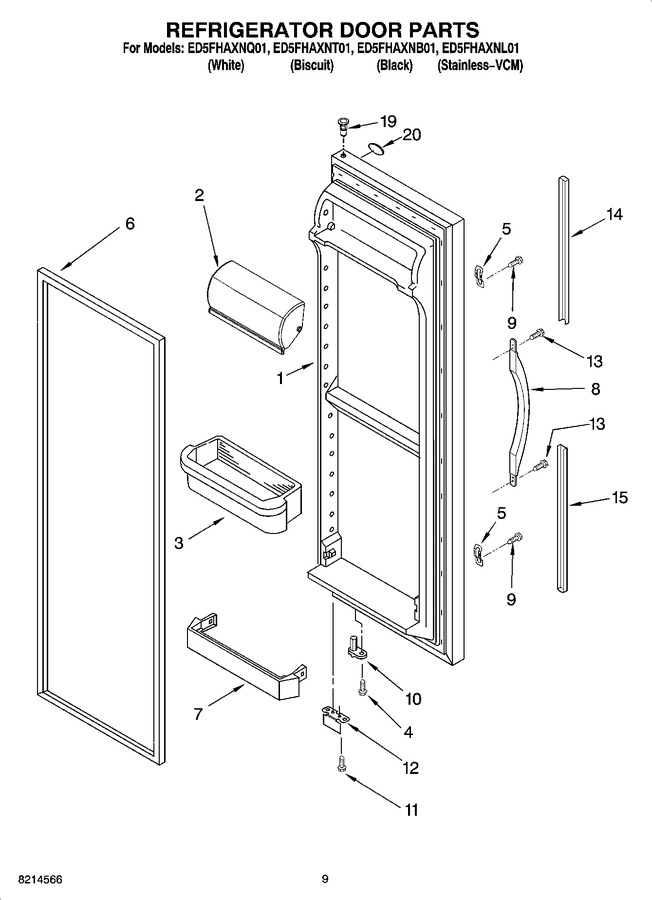

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206682T		Refrigerator Door (includes Item 6) (biscuit)		Appelez-nous	-
1	2206682B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2206682L		Refrigerator Door (includes Item 6) (stainless-vcm)		Appelez-nous	-
1	2206682W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 85.16
3	WPW10321304		Door Bin (3)   (Replaces: 2304235)			Immediately	$ 44.73
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
5	WP2195327		Clip   (Replaces: 2195327)				$ 7.40
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
7	WP2156022		Shelf Bin   (Replaces: 2156022)			Immediately	$ 72.80
8	2186649B		Handle (black)				$ 72.96
8	2186649W		Handle (white)				$ 70.49
8	2186649T		Handle (biscuit)		Appelez-nous	-
9	WP3400852		Screw (4)   (Replaces: 3400852)				$ 9.84
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
12	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
13	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
14	2194973W		Trim, Door-top (white)				$ 5.65
14	2194973B		Trim, Door-top (black)		Appelez-nous	-
14	2194973T		Trim, Door-top (biscuit)		Appelez-nous	-
15	WP2194969B		Trim, Door-bottom (black)   (Replaces: 2194969B)				$ 116.40
15	2194969W		Trim, Door-bottom (white)				$ 5.51
15	2194969T		Trim, Door-bottom (biscuit)		Appelez-nous	-
19	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
20	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74

    View Diagram in Separate Window       Print Part List
