SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts

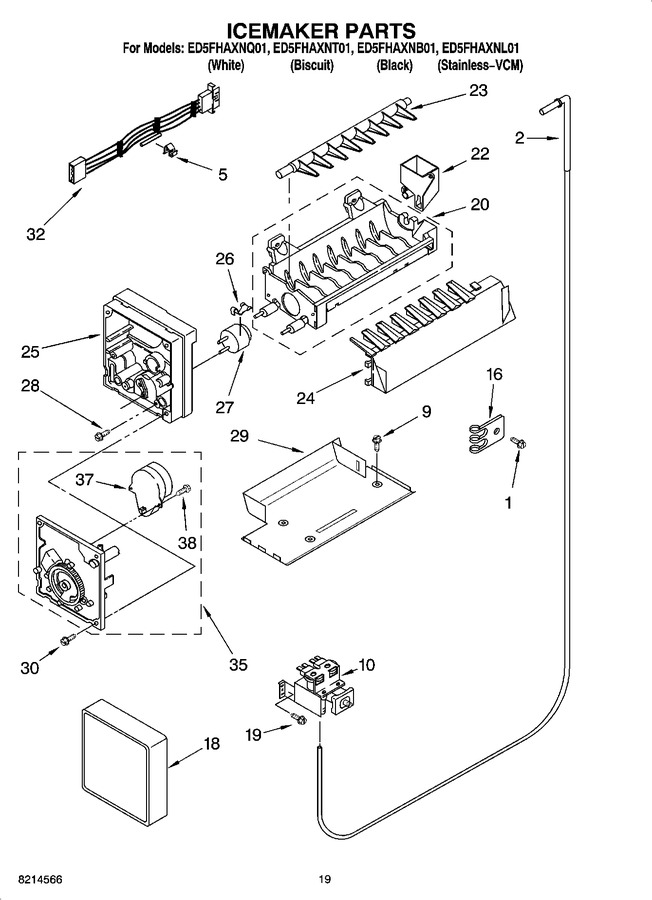

12 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
2	WP2256096		Fitting, Water Tube   (Replaces: 2256096)			Immediately	$ 203.86
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
9	WP489478		Screw   (Replaces: 489478)				$ 7.75
10	W10408179		Filter Valve Asm   (Replaces: 2304757)			Immediately	$ 96.38
16	WP488366		Clip, Tube   (Replaces: 489385)				$ 11.18
18	WPW10289690		Cover   (Replaces: 2174358)			Immediately	$ 8.40
19	WPW10141625		Screw   (Replaces: 488649)				$ 21.16
20	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: 628228)				$ 233.15
22	WP628356		Bearing & Inlet   (Replaces: 628356)				$ 51.19
23	WP627843		Ejector   (Replaces: 627843)				$ 83.60
24	W10297244		Ice Stripper   (Replaces: 2198598)				$ 73.14
25	WP2195914		Support   (Replaces: 2194712)				$ 104.57
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.05
27	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 627985)				$ 109.18
28	8533917		Screw				$ 13.37
29	WP2212322		Bracket, Icemaker Mounting   (Replaces: 2212322)			Immediately	$ 107.08
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
32	WP2187467		Harness, Wiring   (Replaces: 2187467)				$ 128.93
35	8201515		Module Assembly   (Replaces: 626678)			Immediately	$ 141.64
37	W10190935		Motor   (Replaces: 626676)			Immediately	$ 110.07
38	489136		Screw				$ 10.29
100	2198597		Complete Icemaker Assembly			Immediately	$ 182.32
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	350942		Primer, White (12 Oz. Spray Can)				$ 89.66
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	8171357		Enamel, Graphite (12 Oz. Spray Can)				$ 82.31
	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 26.45
	80051		Brush Touch-up Kit (graphite)				$ 7.64
	4210463RW		Coil Brush   (Replaces: 8129)			Immediately	$ 29.82
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.07
	WP2258243		Ice Container- Crusher Assembly   (Replaces: 2258243)				$ 431.29
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	8171358		Enamel, Graphite		Appelez-nous	-
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
	N/A		Torx Screw Wrench		Appelez-nous	-
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
