SELECT A DIAGRAM

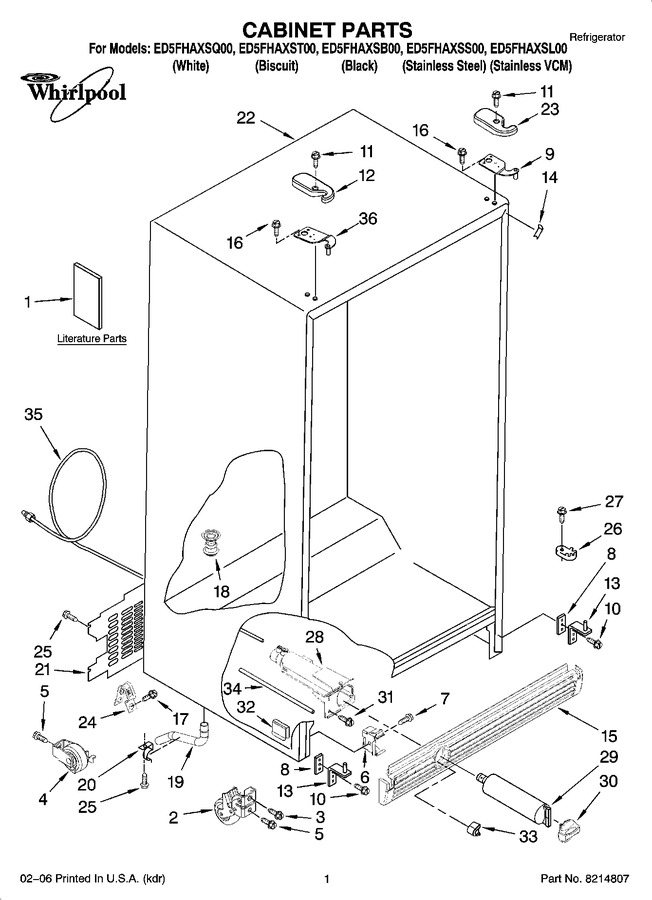

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2255380		Service & Wiring Sheet		Appelez-nous	-
1	787316		Icemaker		Appelez-nous	-
1	2220407		Modular Icemaker Service Sheet		Appelez-nous	-
1	2315273		Energy Guide		Appelez-nous	-
1	2315220		Owner`s Manual		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	WP2181911		Shim   (Replaces: 2156056)				$ 33.21
9	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
10	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
11	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
12	2203407T		Hinge Cover (biscuit)		Appelez-nous	-
12	WP2203407W		Hinge Cover (white)   (Replaces: 2203407W)				$ 20.75
12	WP2203407B		Hinge Cover (black)   (Replaces: 2203407B)				$ 19.52
13	8201707		Hinge Bottom   (Replaces: 2304322)				$ 88.90
14	2196094		Filler, Wrapper (white)		Appelez-nous	-
14	2196097		Filler, Wrapper (black)		Appelez-nous	-
14	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
15	WPW10311032		Grille (white)   (Replaces: 2260500W)				$ 161.58
15	2260500T		Grille (biscuit)		Appelez-nous	-
15	WPW10311033		Grille (black)   (Replaces: 2260500B)				$ 176.10
16	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
18	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 50.90
19	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
21	WP2188755		Cover, Unit   (Replaces: 2252036)				$ 135.91
23	2203408T		Hinge Cover (biscuit)		Appelez-nous	-
23	WP2203408W		Hinge Cover (white)   (Replaces: 2203408W)				$ 20.97
23	WP2203408B		Hinge Cover (black)   (Replaces: 2203408B)				$ 18.63
24	549193		Clamp-service Cord				$ 13.39
25	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
26	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
27	WP489483		Screw   (Replaces: 489483)				$ 10.87
28	WPW10121138		Housing, Water Filter   (Replaces: 2260507)			Immediately	$ 112.91
29	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
30	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
30	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
30	2260502T		Cap, Water Filter (biscuit)		Appelez-nous	-
31	WP489500		Screw   (Replaces: 489500)				$ 7.78
32	2260519		Block, Housing Support		Appelez-nous	-
33	WP2260503B		Button, Water Filter (biscuit)   (Replaces: 2260503T)				$ 72.78
33	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
33	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
34	WPW10350006		Tube, Filter Outlet   (Replaces: 2304708)				$ 115.54
35	WP2304697		Tube, Filter Inlet   (Replaces: 2304697)				$ 137.59
36	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
