Diagram # Part Number Description Series Availability Ships Price Add to Cart
20 D5349401 Shroud Appelez-nous -
32 D5349801 Top Cover Appelez-nous -
33 D5402402 Condenser Coil Assembly Appelez-nous -
40 C5286701 Control Bracket Appelez-nous -
43 B4763501 Thermostat Appelez-nous -
49 A4650201 Spring, Escutcheon Pad Appelez-nous -
49 A3030308 Gasket Appelez-nous -
61 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

62 M0211330 Kit, Screw Appelez-nous -
62 R9800670 Kit, Screw   (Replaces: M0211030) Special Order $ 10.58


    View Diagram in Separate Window     Print Icon   Print Part List

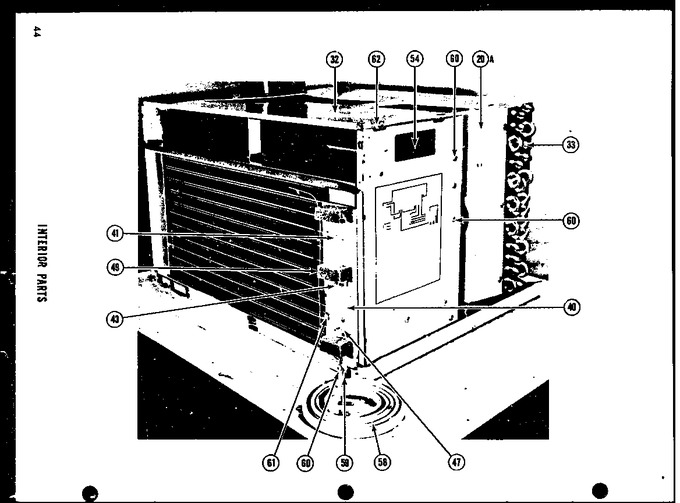

Diagram for 215-3D
