SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter


07 - Controls/top Panel

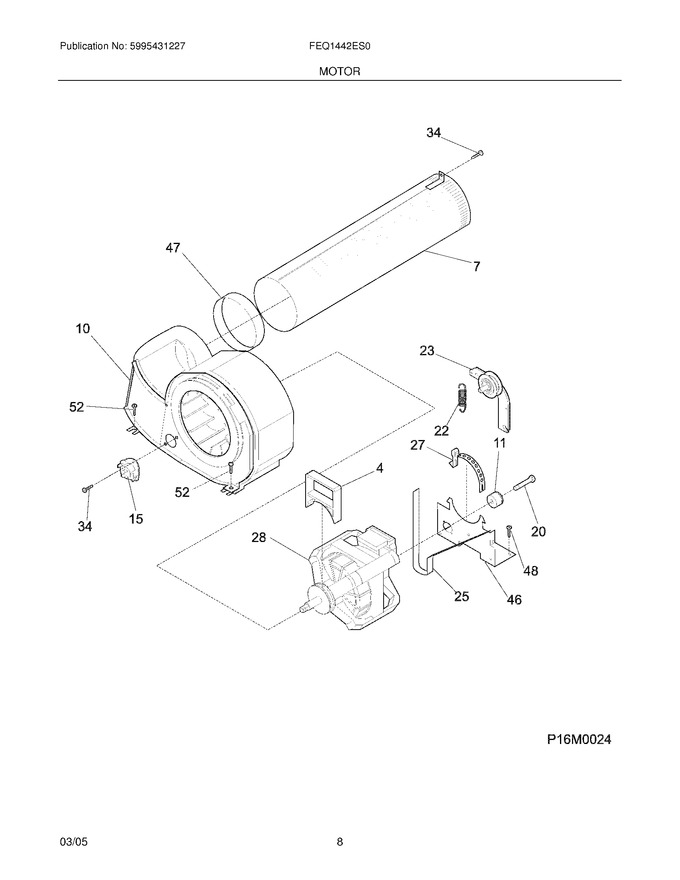

09 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	131435200		Lock,blower Housing				$ 81.13
7	131451600		Tube,exhaust ,rear ,w/mtg Bracket				$ 54.02
11	131749800		Spacer-idler				$ 48.83
20	131017900		Screw,hex Head ,1/4-20t X 1.25 ,spacer Mtg.,thread Cutting				$ 16.07
22	131601000		Spring,idler Arm			Immediately	$ 91.33
27	134242400		Clamp,motor Mtg.			Immediately	$ 39.73
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.73
46	134203400		Bracket,motor Mtg				$ 46.67
47	131633300		Seal-exhaust Tube				$ 19.06
48	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 15.75
52	131202300		Screw,10-16ab X 0.625			Immediately	$ 14.96
F10	131775600		Blower Assy,housing ,w/cover & Wheel			Immediately	$ 172.70
F15	134587700		Thermistor,control   (Replaces: 134216500)			Immediately	$ 62.65
F23	131863007		Idler Arm Assy,w/pulley   (Replaces: 131863004)			Immediately	$ 47.83
F25	134503600		Belt,dryer   (Replaces: 134163400)			Immediately	$ 20.88
F28	131560100		Motor & Pulley Assy				$ 267.34
NI	131456800		Tube,exhaust ,side/bottom ,optional Kit				$ 40.32

    View Diagram in Separate Window       Print Part List
