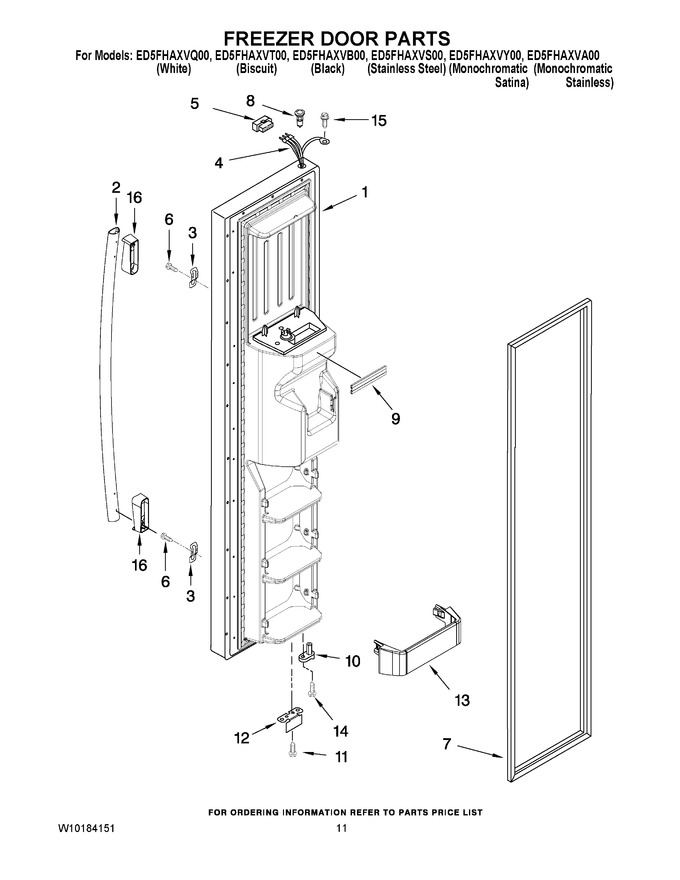

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10141323		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10141325		Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10141324		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10141327		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10177270		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
1	W10177269		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
2	W10210942A		Handle, Extr (black)   (Replaces: W10127809)				$ 123.36
2	W10210942A		Handle, Extr (white)   (Replaces: W10127808)				$ 123.36
2	W10210944A		Handle, Extr (biscuit)   (Replaces: W10127810)		Appelez-nous	-
2	W10273556		Handle, Extr (stainless, All)   (Replaces: W10127811)				$ 280.81
3	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
4	WPW10193328		Dispenser Harness   (Replaces: W10167528)				$ 127.80
5	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
6	WP8533988		Screw (4)   (Replaces: W10155511)			Immediately	$ 7.95
7	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
7	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
7	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
8	2301049		Thimble-top (for White, Black, Biscuit And Stainless Vcm Models)				$ 75.42
8	WP2182181		Thimble, Top (for Stainless Steel Model)   (Replaces: 2308091)				$ 7.76
9	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
13	WP2171157		Trivet, Fc   (Replaces: 2171157K)				$ 60.67
14	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
15	WP489128		Screw   (Replaces: 488500)				$ 10.88
16	W10152864		Handle, Endcap (stainless, All)		Appelez-nous	-
16	W10127813		Handle, Endcap (white)				$ 78.50
16	W10127815		Handle, Endcap (biscuit)		Appelez-nous	-
16	W10127814		Handle, Endcap (black)		Appelez-nous	-
