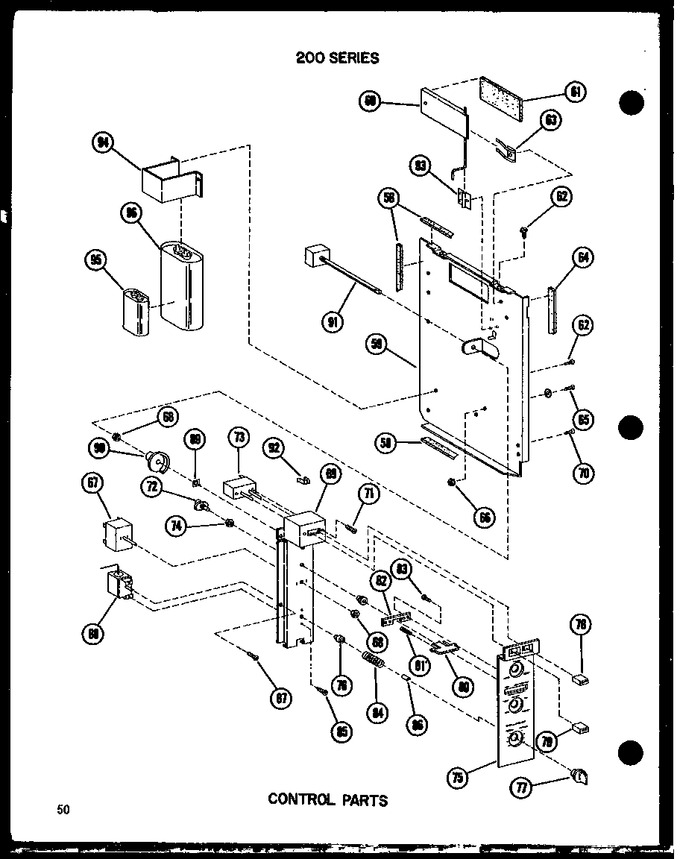

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 58 | A3030332 | Gasket-per Ft |
|
- | |||||
| 59 | D5349303 | Panel, Access |
|
- | |||||
| 60 | B5110802 | Damper Door |
|
- | |||||
| 61 | B5107602 | Gasket |
|
- | |||||
| 62 | M0211545 | Screw |
|
- | |||||
| 63 | B4778002 | Spring |
|
- | |||||
| 64 | B1106203 | Gasket |
|
- | |||||
| 64 | A3030313 | Gasket (per Foot) |
|
- | |||||
| 65 | M0255015 | Sems Fastner |
|
- | |||||
| 66 | WP488130 | Nut (Replaces: M0282007) |
|
$ 7.32 | |||||
| 67 | B5131604 | Switch-rotary |
|
- | |||||
| 69 | D5349604 | Bracket-control |
|
- | |||||
| 70 | M0211530 | Screw |
|
- | |||||
| 75 | C5884901 | Escutcheon |
|
- | |||||
| 76 | A3073601 | Bushing |
|
- | |||||
| 77 | D7009804 | Knob |
|
- | |||||
| 84 | A4663604 | Spring |
|
- | |||||
| 85 | M0232012 | Screw |
|
- | |||||
| 86 | YM0115901 | Clip, Knob Mounting |
|
- | |||||
| 87 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 88 | B4763504 | Thermostat |
|
- | |||||
| 90 | C5271801 | Damper Cam |
|
- | |||||
| 90 | B5132501 | Shaft |
|
- | |||||
| 91 | A4615401 | Bearing |
|
- | |||||
| 92 | M0110503 | Clip |
|
- | |||||
| 93 | A4598401 | Clamp |
|
- | |||||
| 94 | B5115801 | Strap |
|
- | |||||
| 95 | C5825010 | Capacitor, Fan Motor Run, 5 M. |
|
- | |||||
| 96 | C5825017 | Capacitor, Compressor Run, 20 |
|
- |
