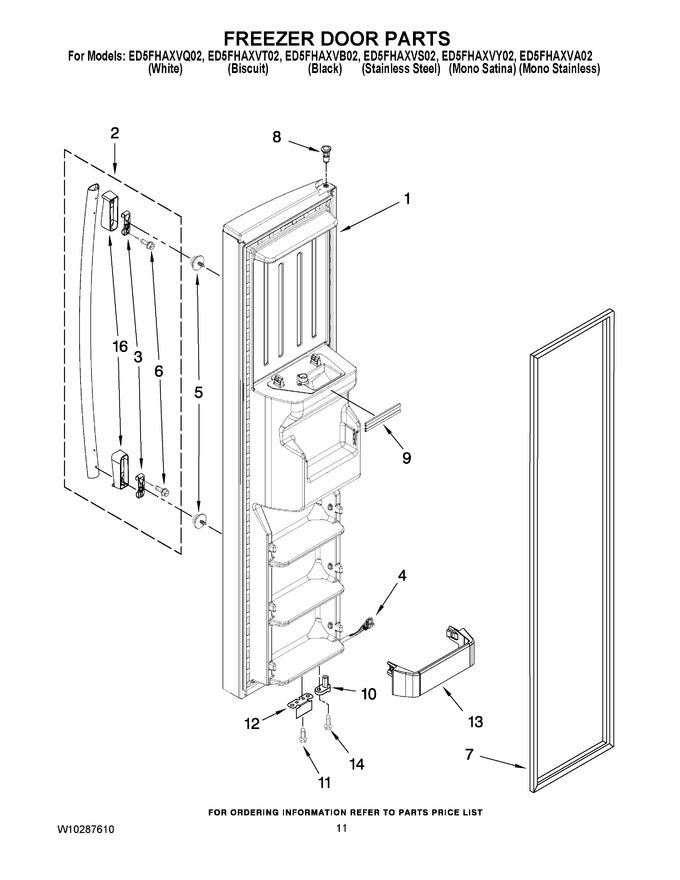

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10141323		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10141325		Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10141324		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10141327		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10177270		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
1	W10177269		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
2	W10210942A		Handle, Assy (black)   (Replaces: W10127804)				$ 129.53
2	W10210942A		Handle, Assy (white)   (Replaces: W10127803)				$ 129.53
2	W10210944A		Handle, Assy (biscuit)   (Replaces: W10127805)		Appelez-nous	-
2	WPW10257120		Handle, Assy (stainless, All)   (Replaces: W10214173)				$ 59.70
3	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
4	WPW10193328		Wire Assy, Door   (Replaces: W10193328)				$ 134.19
5	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 9.65
6	W10267047		Screw (4)   (Replaces: W10201588)				$ 13.47
7	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
7	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
7	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
8	2301049		Thimble-top (for White, Black, Biscuit And Stainless Vcm Models)				$ 75.42
8	WP2182181		Thimble, Top (for Stainless Steel Model)   (Replaces: 2308091)				$ 8.15
9	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
13	2313199		Trivet-fc				$ 90.93
14	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
16	W10152864		Handle, Endcap (stainless, All)		Appelez-nous	-
16	W10127813		Handle, Endcap (white)				$ 82.43
16	W10127815		Handle, Endcap (biscuit)		Appelez-nous	-
16	W10127814		Handle, Endcap (black)		Appelez-nous	-
