SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

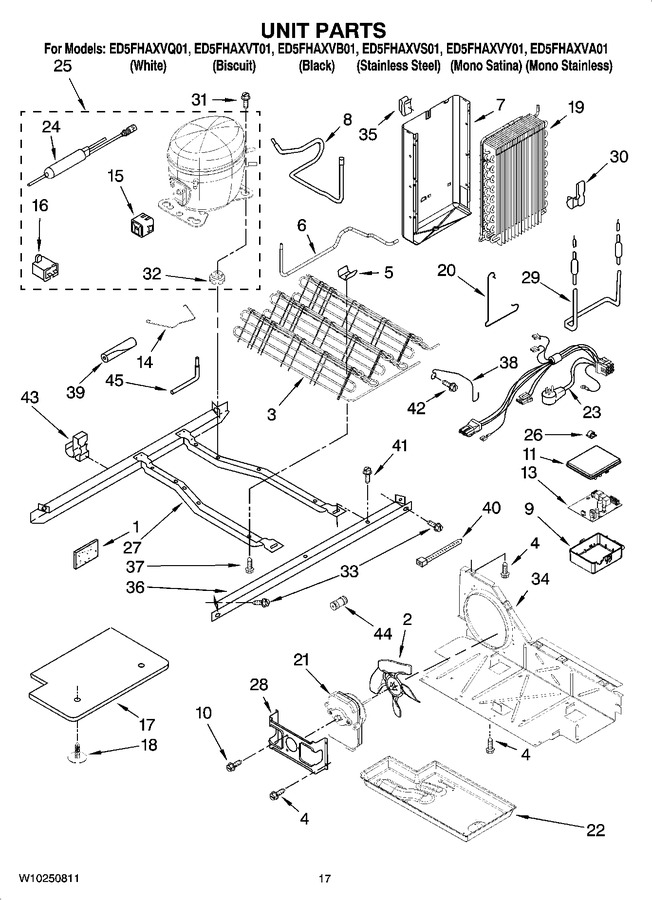

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Insulation, Sound   (Replaces: 2169104)			Immediately	$ 14.07
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly   (Replaces: W10196260)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
6	2161341		Tube, Condenser To Heat Loop		Appelez-nous	-
7	2217194		Heat Shield And Drain Pan		Appelez-nous	-
8	W10528574		Tube Suction   (Replaces: W10177642)				$ 152.72
9	2326982		Control Box				$ 86.07
10	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
11	2255624		Box Cover		Appelez-nous	-
13	2322572		Elec. Control		Appelez-nous	-
14	2223314		Clip, Retaining		Appelez-nous	-
15	WPW10189190		Start-device, Combination (start Relay And Overload)   (Replaces: W10189190)			Immediately	$ 131.29
16	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
17	2304899		Unit Cover, Bottom		Appelez-nous	-
18	489396		Clip				$ 10.72
19	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
20	2161324		Clip		Appelez-nous	-
21	WP2188874		Motor, Fan   (Replaces: 2188874)			Immediately	$ 113.96
22	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
23	W10163019		Harness, Unit		Appelez-nous	-
24	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
25	W10233961		Compressor (also Order 876765 Tube Kit)   (Replaces: W10183575)				$ 612.76
26	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
27	2304904		Unit Mounting Frame		Appelez-nous	-
28	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
29	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
30	W11623163		Clip, Heater   (Replaces: 2304287)		Appelez-nous	-
31	876811		Screw   (Replaces: 489373)				$ 7.42
32	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
33	489340		Screw		Appelez-nous	-
34	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
35	2155547		Clip, Heat		Appelez-nous	-
36	2305374		Unit Mounting Rail				$ 80.64
37	W11544659		Screw   (Replaces: 8281232)				$ 13.67
38	W11661170		Guard, Fan   (Replaces: W10174384)			Immediately	$ 11.30
39	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
40	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.90
41	WP489427		Screw   (Replaces: 489427)				$ 7.47
42	WP489478		Screw   (Replaces: 489478)				$ 7.75
43	W10169512		Clip, Wire & Tube		Appelez-nous	-
44	WPW10334458		Union   (Replaces: 2320322)				$ 21.59
45	W10221712		Process Tube		Appelez-nous	-
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
	978026		Valve, Access (5/16``)			Immediately	$ 128.09
	876764		Valve, Access(3/16``)			Immediately	$ 91.35
	978030		Valve, Access (3/4``)				$ 130.71
	978029		Valve Access (5/8``)				$ 93.85
	978028		Valve, Access (1/2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
