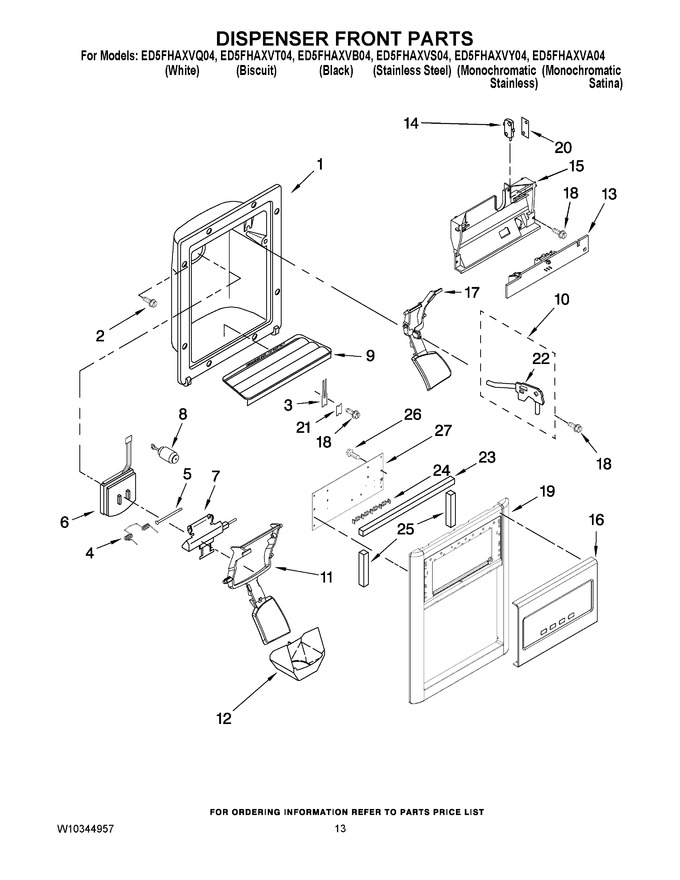

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.77
4	WPW10224328		Spring, Torsion   (Replaces: W10224328)				$ 83.24
5	WP2196195		Pin   (Replaces: 2196195)				$ 14.58
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 24.69
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	WP2206670B		Grille, Overflow (satinless)   (Replaces: W10171993)			Immediately	$ 35.52
9	WP2206670W		Grille, Overflow (white)   (Replaces: W10323445)				$ 68.80
9	WP2206670T		Grille, Overflow (biscuit)   (Replaces: W10323447)				$ 66.57
9	WP2206670B		Grille, Overflow (black)   (Replaces: W10323446)			Immediately	$ 35.52
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: W10133007)				$ 134.13
11	WPW10152854		Lever, Ice Dispenser (black)   (Replaces: W10152854)				$ 103.81
11	W10155161		Lever, Ice Dispenser (apollo Grey)				$ 99.73
11	WPW10152853		Lever, Ice Dispenser (white)   (Replaces: W10152853)				$ 106.51
11	W10152855		Lever, Ice Dispenser (biscuit)				$ 98.90
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.63
13	W10245284		Led Assy				$ 62.79
14	WP2162361		Switch   (Replaces: 2162361)			Immediately	$ 27.34
15	W10728484		Bracket, Control   (Replaces: W10206221)				$ 57.32
16	W10157637		Fascia Assy (white)		Appelez-nous	-
16	W10157639		Fascia Assy (biscuit)		Appelez-nous	-
16	W10157641		Fascia Assy (mono Stainless)				$ 143.61
16	W10171977		Fascia Assy (stainless, Mono Satina)		Appelez-nous	-
16	W10157638		Fascia Assy (black)				$ 23.17
17	W10152860		Lever, Water Dispenser (biscuit)			Immediately	$ 95.77
17	W10155162		Lever, Water Dispenser (apollo Grey)				$ 68.97
17	WPW10152858		Lever, Water Dispenser (white)   (Replaces: W10152858)				$ 104.60
17	WPW10152859		Lever, Water Dispenser (black)   (Replaces: W10152859)			Immediately	$ 97.92
18	WP3400906		Screw   (Replaces: 489000)				$ 7.84
19	W10136851		Bezel, Disp (black)		Appelez-nous	-
19	W10171988		Bezel, Disp (stainless, Mono Satina (ss))		Appelez-nous	-
19	W10139842		Bezel, Disp (mono Stain (no))				$ 78.48
19	W10136852		Bezel, Disp (biscuit)		Appelez-nous	-
19	W10136850		Bezel, Disp (white)				$ 185.00
20	625834		Spacer, Switch (2)				$ 7.99
21	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.67
22	WP2304673		Bracket, Dispenser   (Replaces: 2304673)				$ 15.60
23	2305571		Gasket, Disp				$ 26.13
24	W10170412		Support, Window		Appelez-nous	-
25	W10194025		Gasket, Disp (2)		Appelez-nous	-
26	2006254		Screw (2)   (Replaces: 489214)				$ 13.13
27	2321748		Ctrl-elek, Puma				$ 224.49
