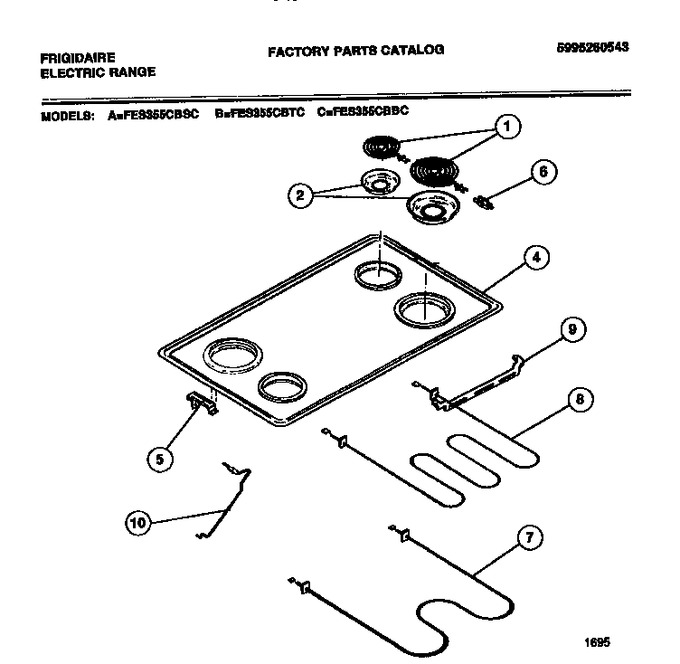

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5301314951 | Element S/u Sm (2) |
|
- | |||||
| 2 | 316048414 | Pan S/u Sm (2) (Replaces: 5303280336) |
|
Immediately | $ 17.90 | ||||
| 4 | 5303300167 | Top-main-almond |
|
- | |||||
| 5 | 5303305530 | Hinge-top (2) |
|
- | |||||
| 6 | 5303935058 | Block-terminal (4) (Replaces: 5301167733) |
|
Immediately | $ 15.34 | ||||
| 7 | 5303051519 | Element-bake |
|
Immediately | $ 49.67 | ||||
| 8 | 5303051516 | Element-broil |
|
$ 210.26 | |||||
| 9 | 5303300179 | Support-br Element |
|
- | |||||
| 10 | 3051554 | Rod-top Support |
|
- | |||||
| 1A | 316442301 | Element S/u Lg (2) (Replaces: 5303012223) |
|
Immediately | $ 49.32 | ||||
| 1B | 5303301461 | Center Trim (non-illustrated) |
|
- | |||||
| 2A | 316048413 | Pan S/u Lg (2) (Replaces: 5303013588) |
|
Immediately | $ 10.94 |
