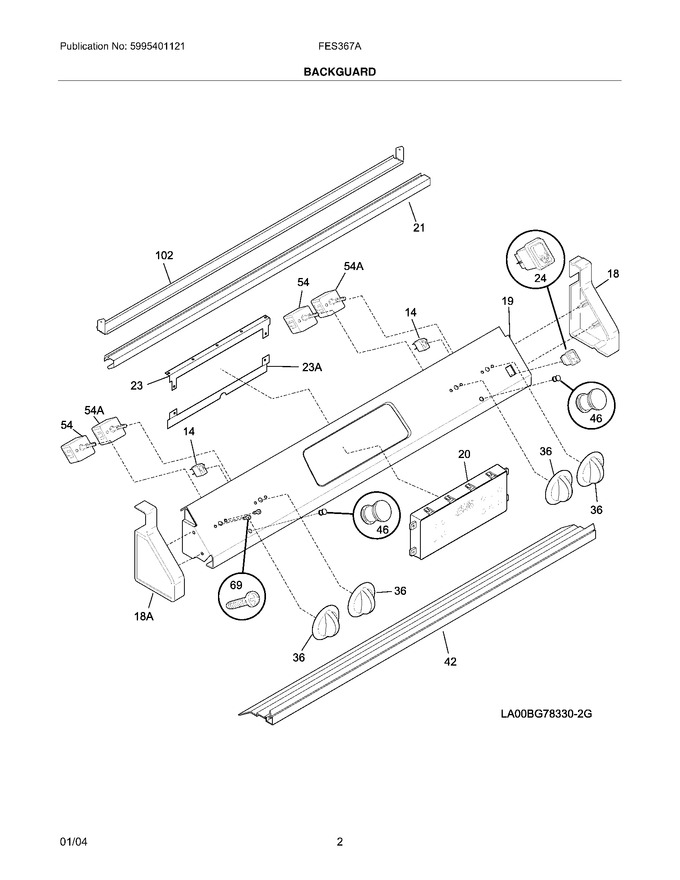

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	318039310		End Cap,white ,rh		Appelez-nous	-
19	318182990		Panel,control Mtg. ,white		Appelez-nous	-
21	318027804		Trim-backguard,white ,top				$ 135.56
23	318015042		Bracket,clock Mtg ,upper		Appelez-nous	-
36	318196633		Knob,control ,white				$ 69.94
42	318106924		Trim,backguard ,white ,bottom				$ 132.04
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 25.45
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.47
102	318055601		Bracket-mounting				$ 34.13
18A	318039311		End Cap,white ,lh		Appelez-nous	-
23A	318015043		Bracket,clock Mtg ,lower		Appelez-nous	-
F14	318076700		Light,indicator ,125v		Appelez-nous	-
F20	318185446		Clock/timer,electronic ,white ,es300				$ 406.35
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 17.92
F54	318293820		Switch,surface Unit ,small   (Replaces: 318220006)				$ 92.91
F54A	318293827		Switch,surface Unit ,large   (Replaces: 318220007)			Immediately	$ 100.91
NI	316220804		Overlay,clock ,white ,es300			Immediately	$ 47.25
NI	08002868		Screw 10 X 24 X 1/2				$ 15.75
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 16.54
