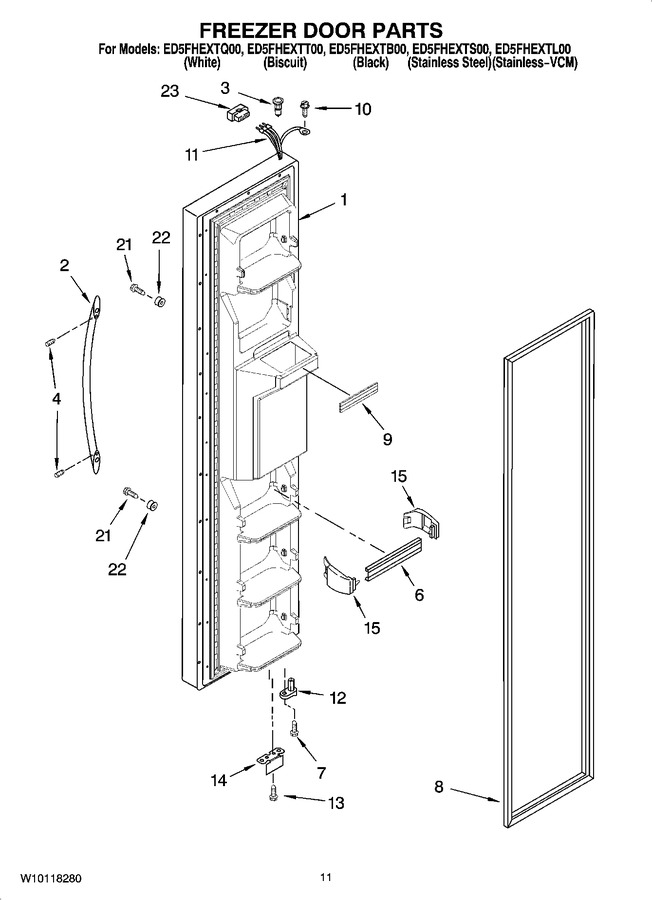

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2326306W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2326306T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2326306B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2326306S		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2326306LG		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
2	2319729T		Handle (biscuit)		Appelez-nous	-
2	WP2254600W		Handle (white)   (Replaces: 2319729W)				$ 235.14
2	2254600S		Handle (stainless Steel)				$ 106.71
2	WP2254600B		Handle (black)   (Replaces: 2319729B)				$ 208.77
3	WP2182181		Thimble, Top (for White, Black, Biscuit And Stainless Vcm Models)   (Replaces: 2182181)				$ 7.76
3	2301049		Thimble, Top (for Stainless Model)				$ 75.42
4	W11366418		Screw   (Replaces: W10010140)			Immediately	$ 15.79
6	2313199		Door Trim (4)   (Replaces: 2313199K)				$ 86.60
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 23.11
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2311641		Wire Harness   (Replaces: 2206601)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
15	2195917		End Cap (8)		Appelez-nous	-
21	WP488163		Screw   (Replaces: 488208)				$ 7.54
22	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
23	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
